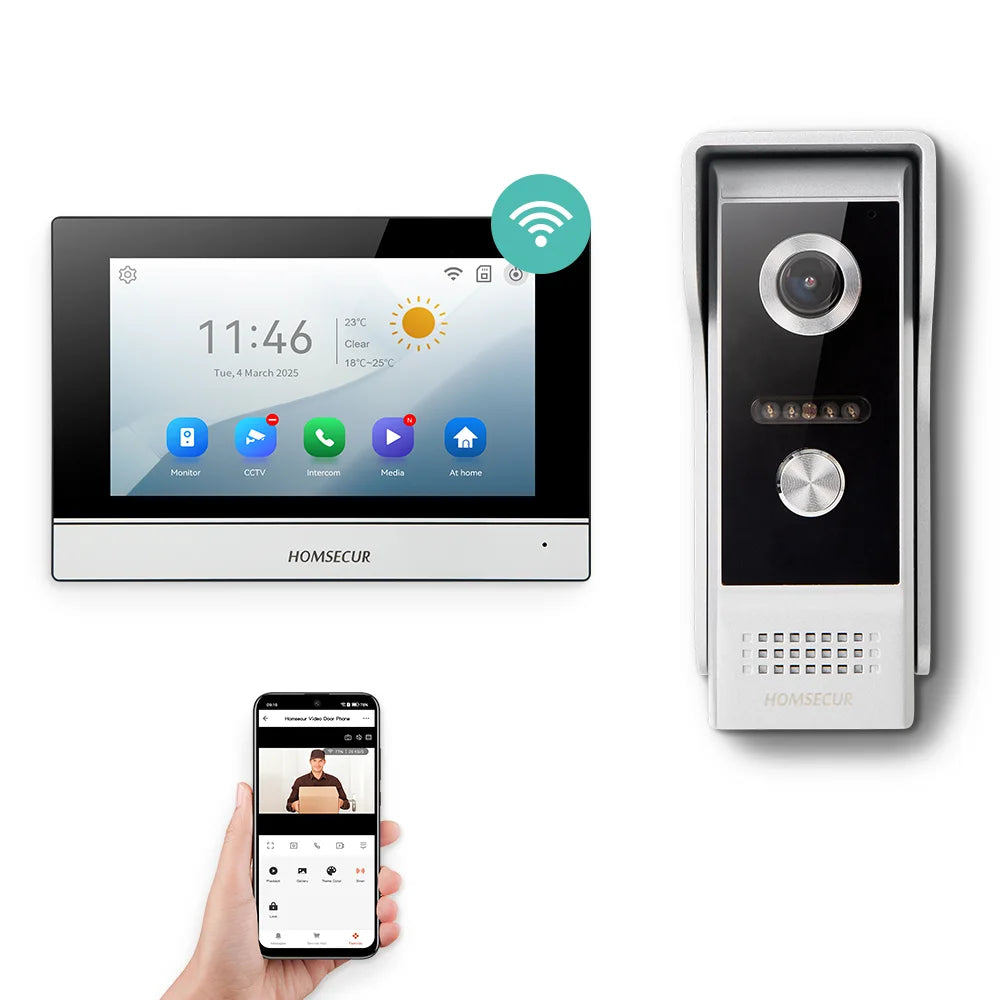

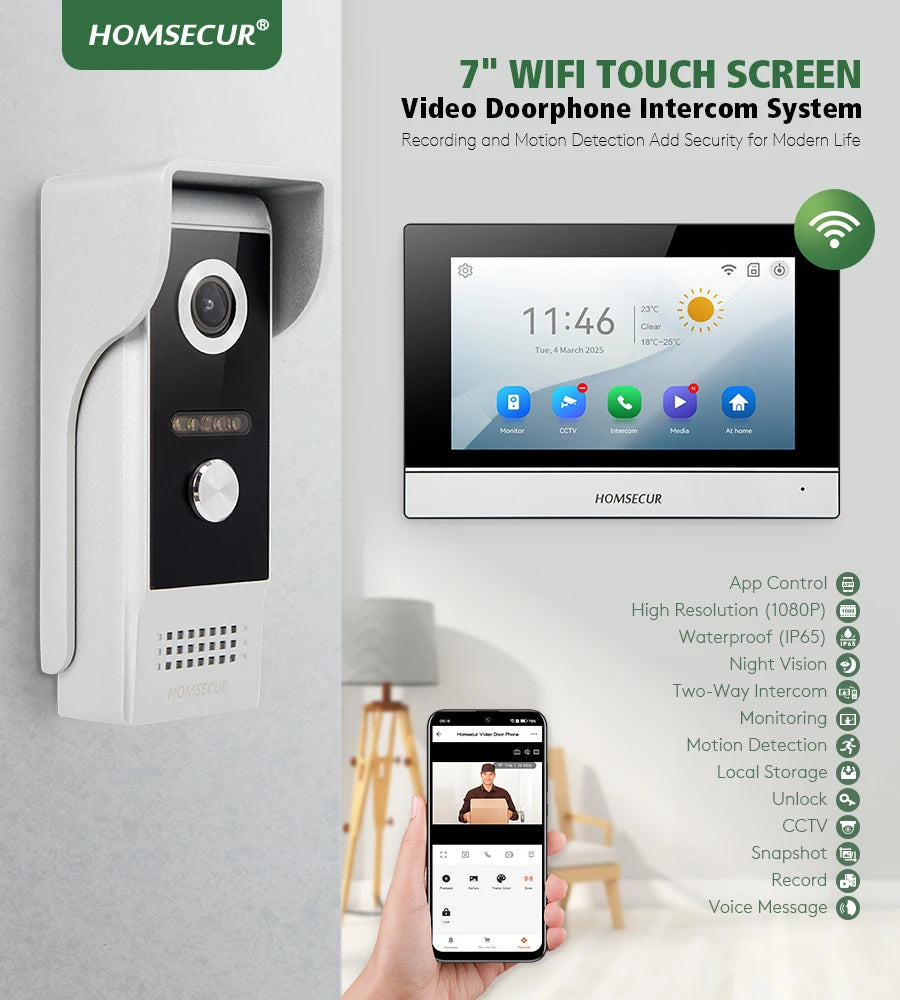

TuyaSmart APP-Controlled 4-Wire Video Doorphone Intercom with Touch Screen and Stylish User Interface

1*XC006H Outdoor Camera + 1*XM713H Indoor Monitor

This all-new way-range kit features an easy-to-use 7" touch screen color monitor and a robust entrance panel using 4-wire technology. It combines video and intercom capabilities into one, enabling you to see who's there on the monitor or via your smartphone, and grant entrance to authorized individuals without having to open the door. This system is now widely used in villas, offices, private homes, and other places that require intercom systems. It is not only an intercom system but also a home security solution for your modern lifestyle.

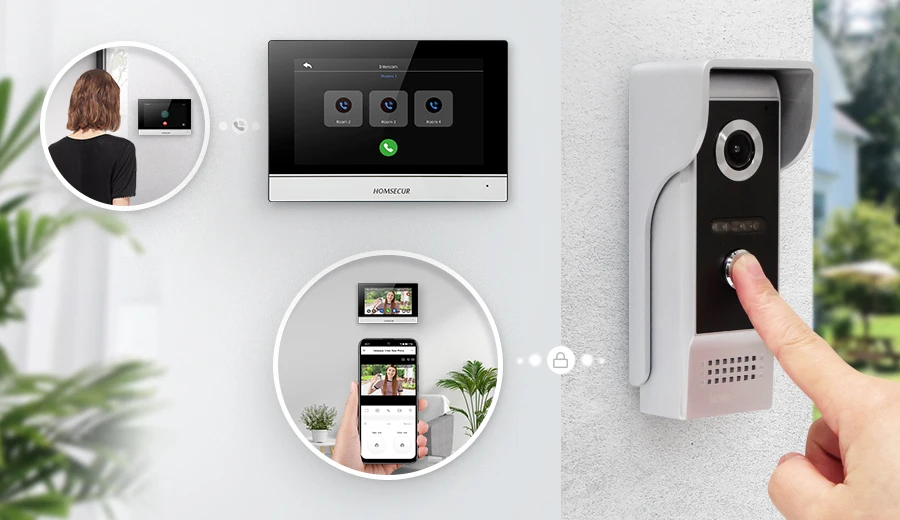

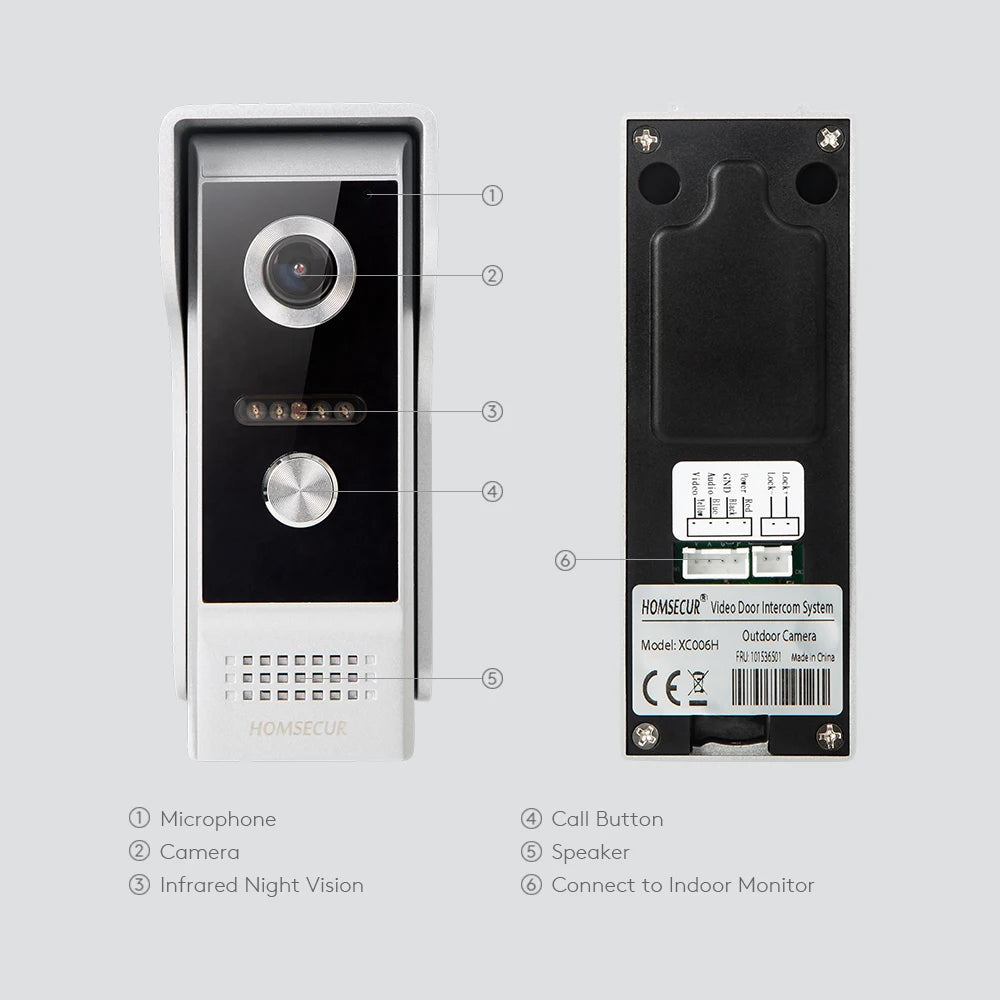

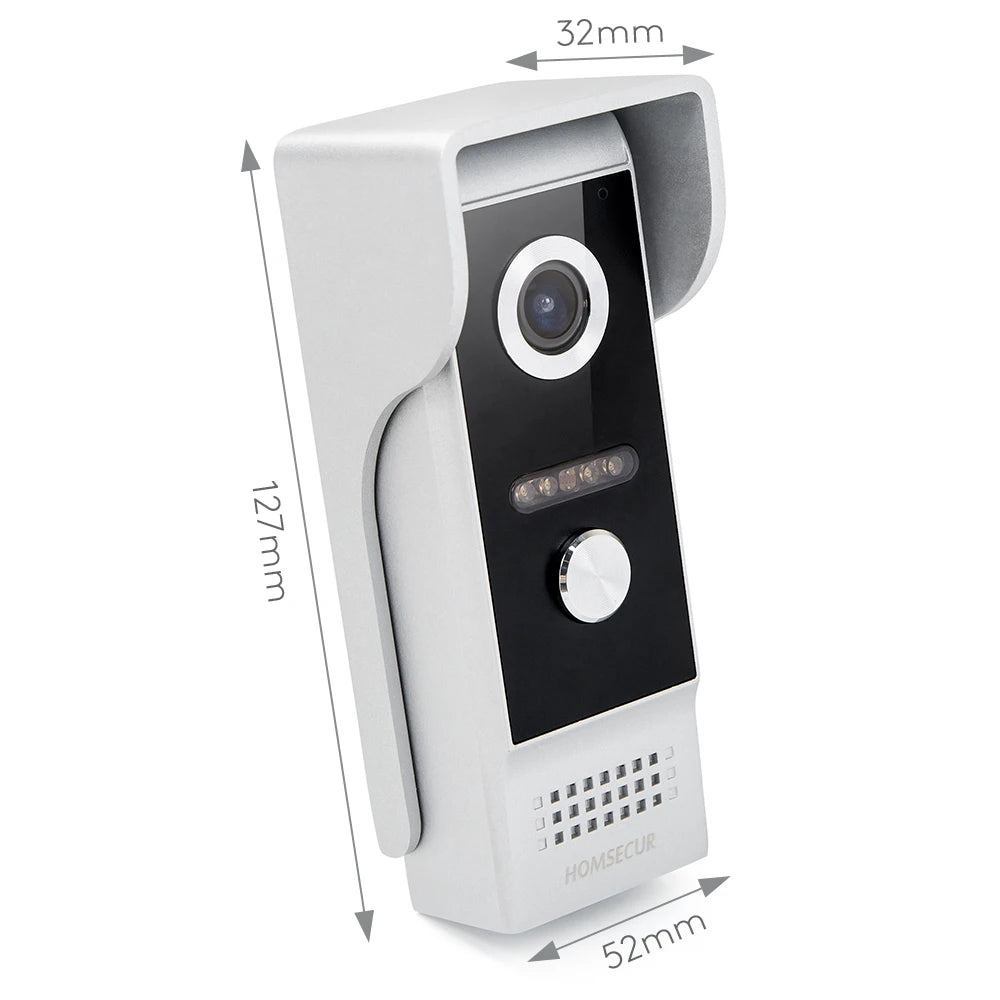

HOMSECUR® 2.0MP Doorbell Camera (XC006H)

• CMOS camera with 2.0MP(1080P) for high-quality viewing

• 120° wide-angle for a broader view

• Rated IP65 with a durable rainproof cover

• Door release with 2-port Wet Contact

• Offset IR LED lighting for clear night vision

Specifications of Outdoor Camera

• Model NO.:XC006H

• Color:Silver+Black

• Function:Call Button

• Sensor:1/4 CMOS

• Horizontal Resolution:2.0MP

• Lens:3.6mm

• Video Output Signal:1080P

• View Angle:120°

• Night Vision Image:Black & White

• Night Vision Distance:0.2~3M

• Ingress Protection Rating:IP65

• Power Consumption (working):≤5W

• Power Consumption (standby):≤2W

• Net Weight:450g

• Material:Aluminum alloy & Acrylic Panel

• Working Temperature:-30°C~+60°C

• Installation:Surface mount

HOMSECUR® 7 " Touch Screen Monitor with Multi-Language Menu (XM713H)

• High-resolution (1080P) display

• WiFi communication technology

• Smartphone "Tuyasmart" App for remote control and viewing

• Motion detection

• Dual lock control

• Extension memory (Max 128G TF Card)

• 10 well-known language menus

• Snapshot and recording functions

• Leave a message when nobody is in

• 6 selectable ringtones with adjustable volume

• Manual call transfer between monitors (＞1 monitor)

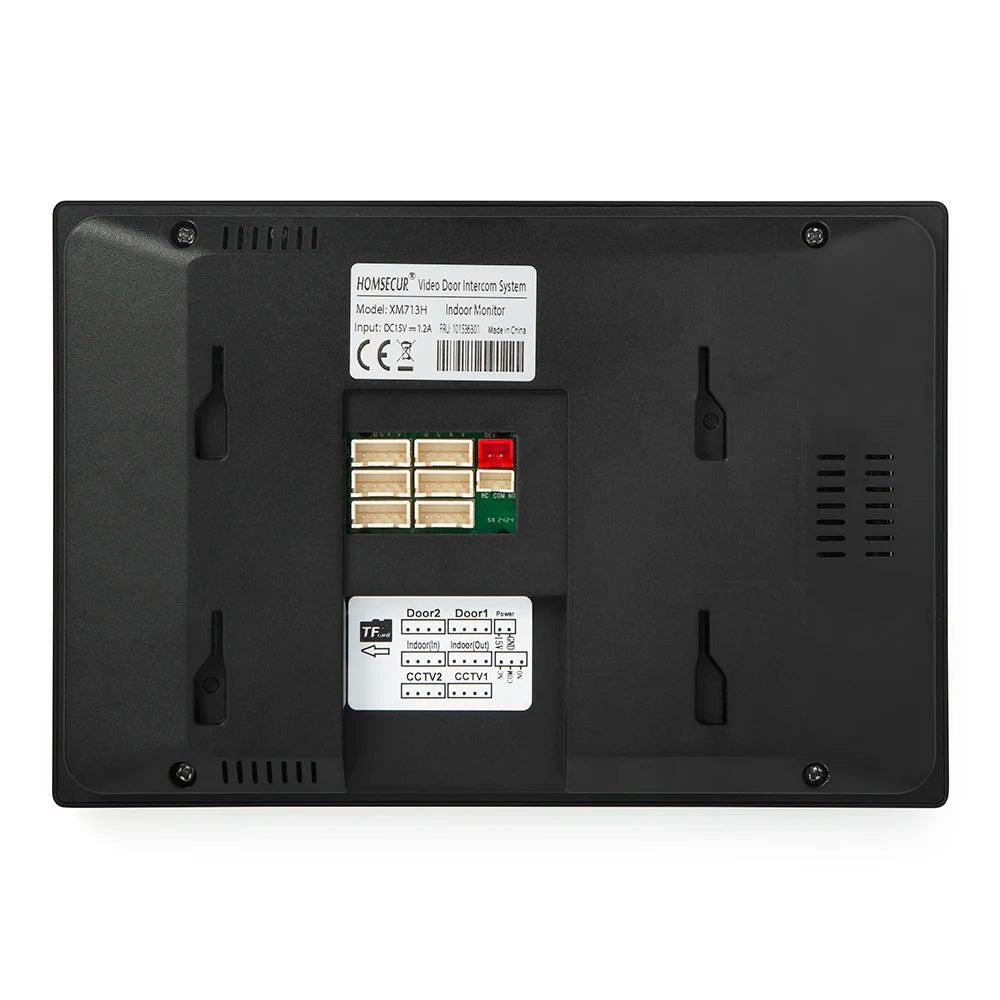

Specifications of Indoor Monitor

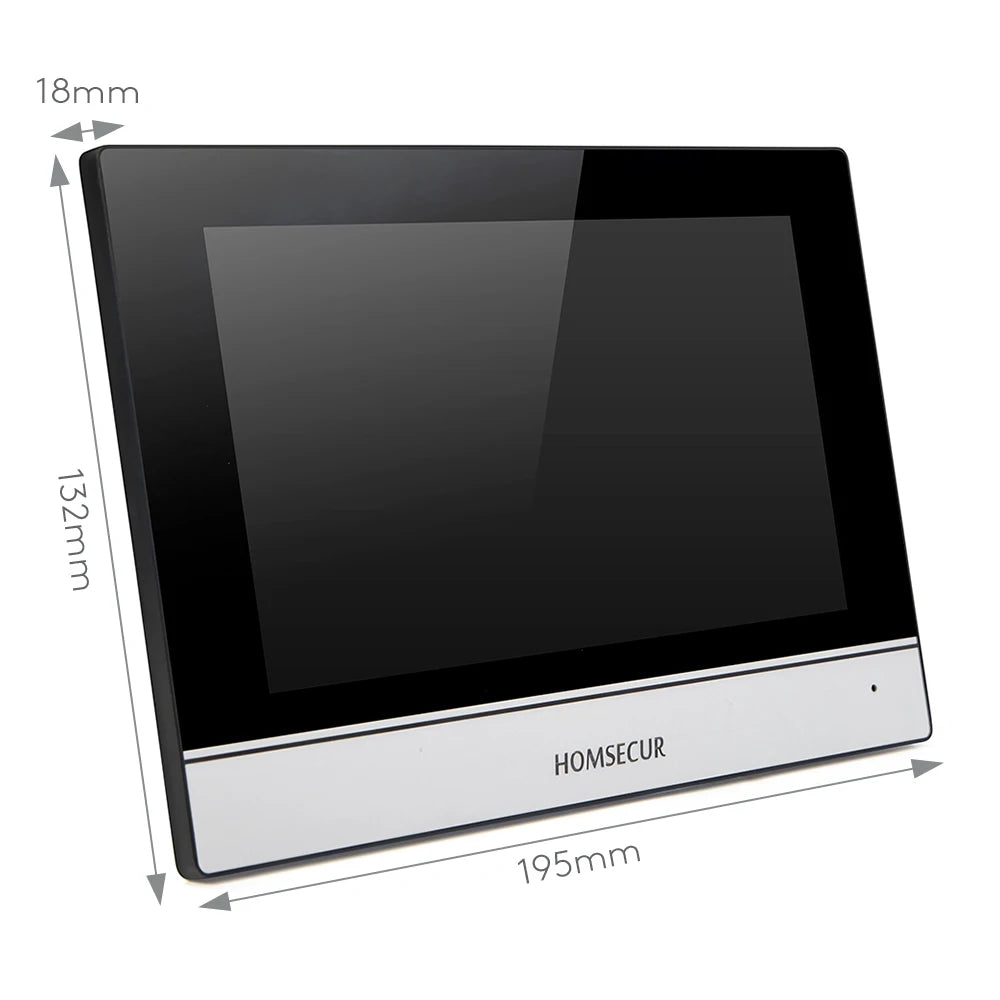

• Model NO.:XM713H

• Screen:7″ IPS Touch Screen

• Resolution:1080P(1024×600)

• WiFi:IEEE802.11b/g/n (2.4GHz) wireless network

• Free APP:Tuya Smart APP for iOS and Android

• Adapter Input:AC100-240V, 50-60HZ

• Adapter Output:DC15V/1.2A

• Video Input Signal:1080P

• Motion Detection:Support

• CCTV Anti-tamper Alarm:Support

• Call Holding Duration:30s

• Monitoring Duration:60s

• Power Consumption (working):≤10W

• Power Consumption (standby):≤3W

• Material:ABS & Acrylic Panel

• Net Weight:900g

• Working Temperature:0°C~50°C

• Installation:Surface mount

• Extension Memory:Support Max 128G TF Card

• Picture Format:JPEG

• Video Format:AVI

• Ringtones:6(Customizable)

• Wallpaper:1024*600 JPG(Customizable)

• Menu Languages:10: English, 简体中文, Русский, Français, Deutsch, العربية, Português, Español, Italiano, Polski

• Cable for Intra-monitor:4 core

• Cable for Monitor-to-Camera:4 core

• Relay:NO COM NC

• Unlock Duration Adjustable:1-30s

Convincing Advantages for Your Worthwhile

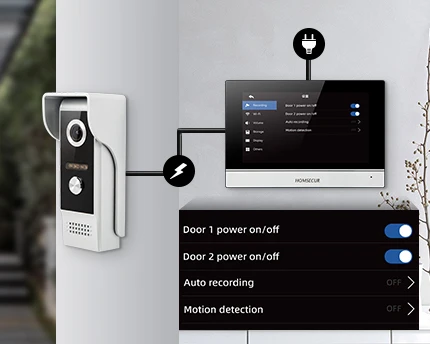

Easy and Hassle-Free Installation

The indoor unit can supply power to the outdoor unit. This feature helps overcome the difficulty of getting power outdoors in some places.

High Resolution Guarantees sharp, Non-Blurry Images

The 1080P screen combined with a 2.0MP camera delivers clear images for easy visitor identification.

IR LEDs and Offset Lighting for Quality Night Vision

Equipped with IR LEDs, this camera significantly improves visibility for people in low-light situations.

Real-time Monitoring and Safety Checks Without Having to Step Outside

Monitor the area outside your door in real-time via your smartphone or indoor monitor, and keep track of visitor activity anytime.

Two-Way Voice Communication

The system supports intercom functionality between the doorbell camera and the monitor, as well as between monitors (up to 2 monitors). Additionally, it enables remote conversations with visitors, allowing you to communicate even when you're not at home.

Free App for iPhone and Android smartphones

Search "Tuya smart" in the APP store or Google Play store. This app supports intercom, monitoring, and unlocking on your mobile devices, allowing you to control the system anytime, anywhere.

Motion Detection for Enhanced Security Around Your Door

When this feature is activated, the system detects any activity near your door and sends instant notifications to your mobile device, significantly enhancing your home security.

Built-in Memory and External TF Card Storage

The system supports TF cards of up to 128GB, allowing you to store visitor messages, snapshots, monitoring images, and video recordings. This ensures you never miss a visitor and helps eliminate potential risks around your property.

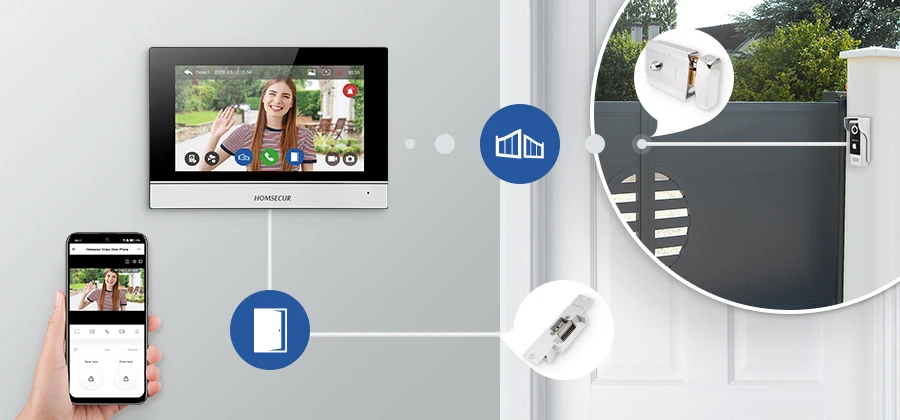

Work with Two Electric Locks, Support Separately Control

The system works with two electric locks: one is connected to the outdoor camera and the other is connected to the indoor monitor, enabling separate control. It offers a dual unlocking option (via the APP and the screen) and allows for the unlocking duration to be adjusted from 1 to 30 seconds on the monitor.

CCTV Camera for Enhanced Property Security

The master monitor supports up to two CCTV cameras, expanding coverage and enhancing security. When motion detection is activated, the monitor alerts you to any movement in blind spots and captures snapshots or records video of the detected activity. Note: The CCTV camera should be 2.0MP. Please contact us for a quotation if you need one.

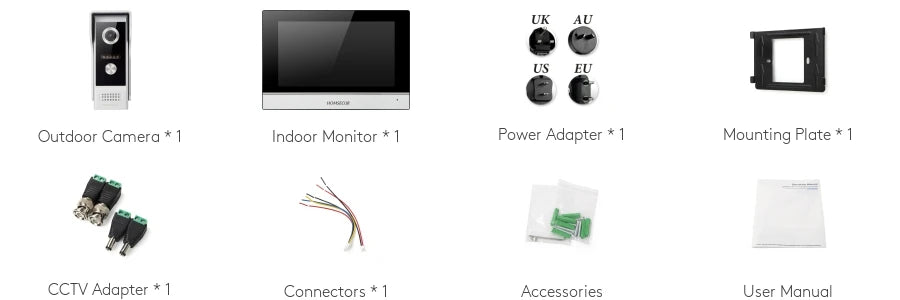

Customize a Video Doorphone Intercom Set to Meet Tailored Needs

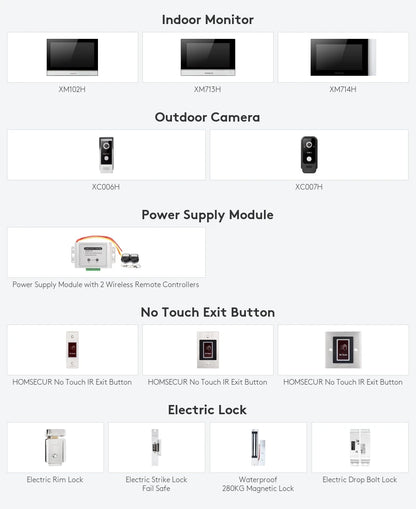

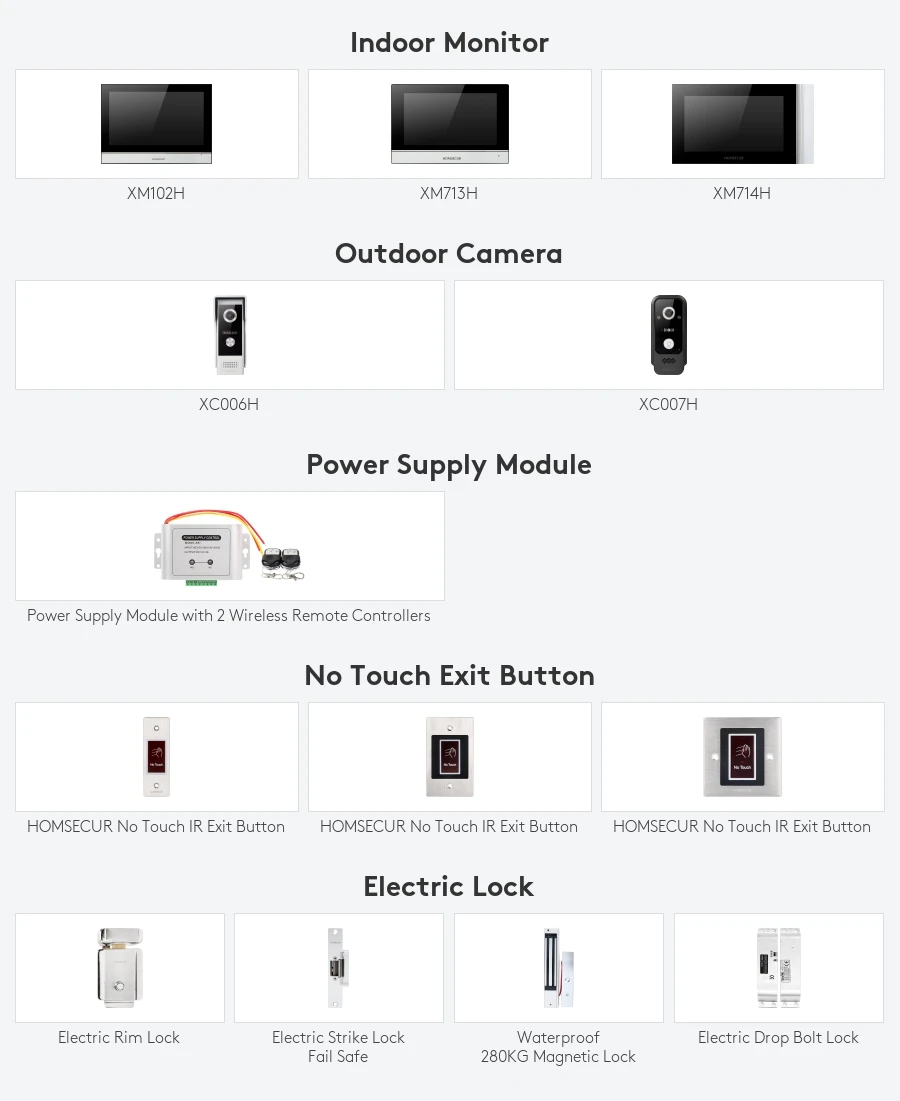

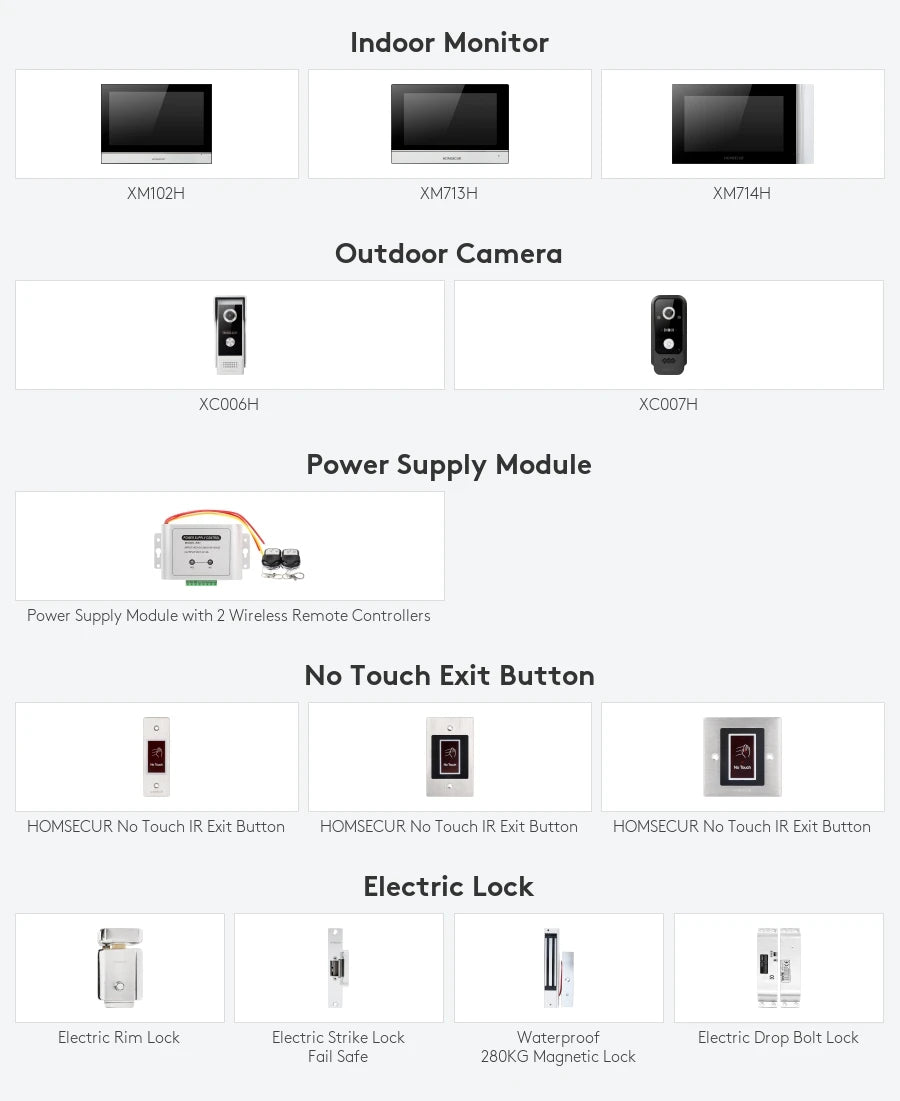

This kit supports 2 outdoor cameras, 4 indoor monitors, 2 CCTVs, and various types of DC12V electric locks. You can customize a special set based on your specific needs. Related listings are available in our store. Feel free to purchase or contact us for more information.

Cable and Distance Requirement

The entire system operates effectively within a maximum distance of 100 meters. Please ensure to follow the cable requirements for optimal performance. If Cat5 or Cat6 cables are used, the total length should be within 20-30 meters for stable performance.

Length of Cable Conductor Cross-sectional Area

0m ≤ Length < 30m RVV4* 0.30mm²

30m ≤ Length < 50m RVV4 * 0.50mm²

50m ≤ Length < 80m RVV4 * 0.75mm²

80m ≤ Length ≤ 100m RVV4 * 1.00mm²

Wiring Diagrams for Reference

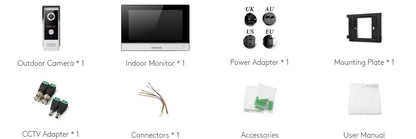

All the products shown in the wiring diagrams are for reference only. Please refer to the package contents to see what's in this listing.

• Fail-Safe Lock: When the power is off, the lock is open.

• Fail-Secure Lock: When the power is off, the lock is closed.

Note: The outdoor camera is compatible with electric rim locks without requiring additional power supply for the lock (as depicted in Fig.1). If you intend to connect it to other types of electric locks, a power supply control unit (as depicted in Fig.2) is necessary. Please contact us for a quote on the power supply control unit if needed.

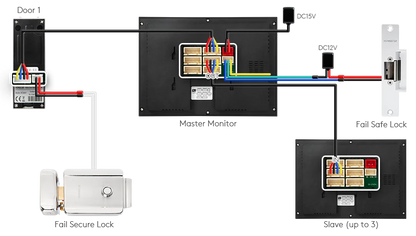

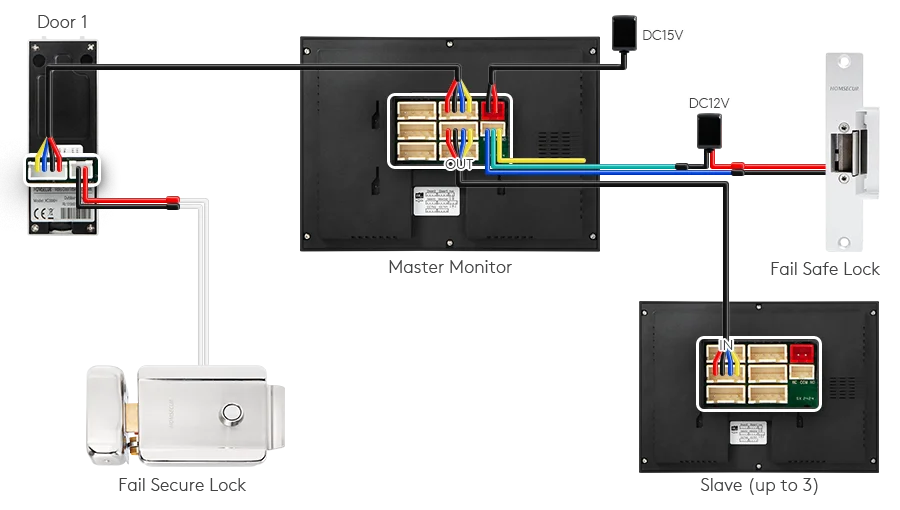

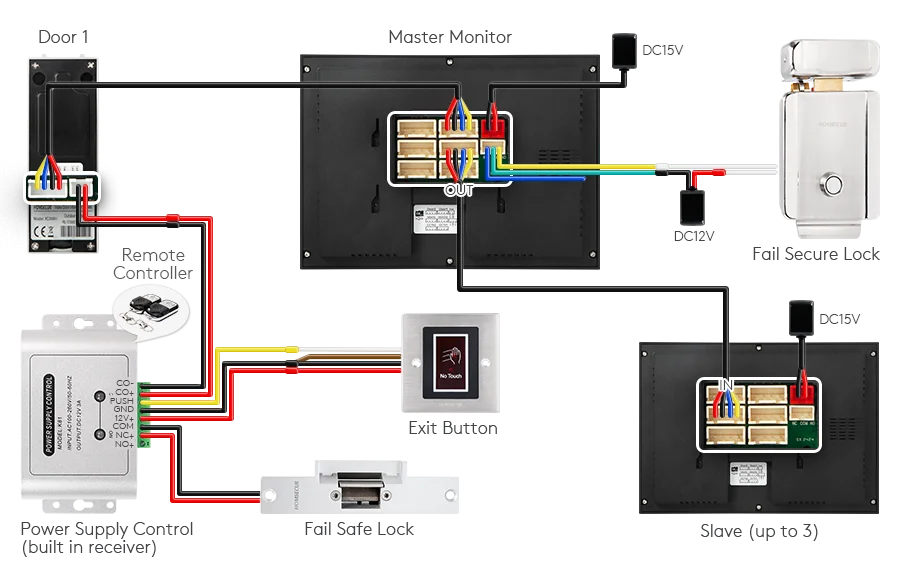

Fig. 1 Wiring for Fail-Safe and Fail-Secure Electric Locks

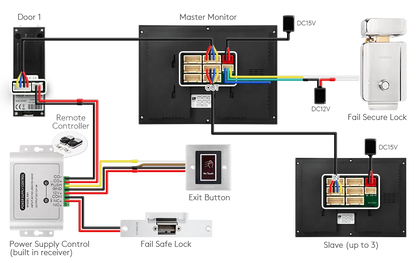

Fig. 2 Wiring for Fail-Safe Electric Lock and Unlock via Remote Controller

This wiring setup supports unlocking via the exit button and the remote controller. However, for proper operation in this configuration, a power supply module needs to be added.

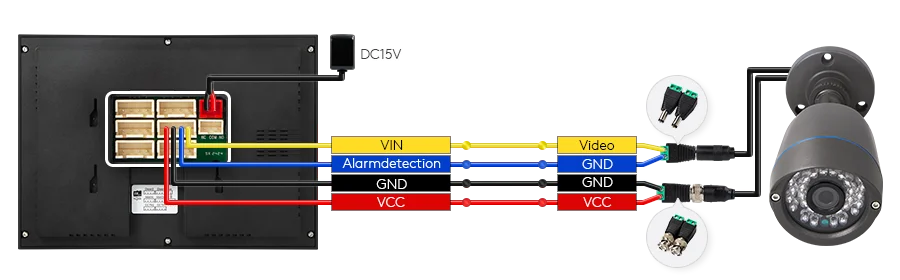

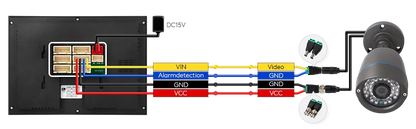

Fig. 3 Wiring for CCTV Camera
