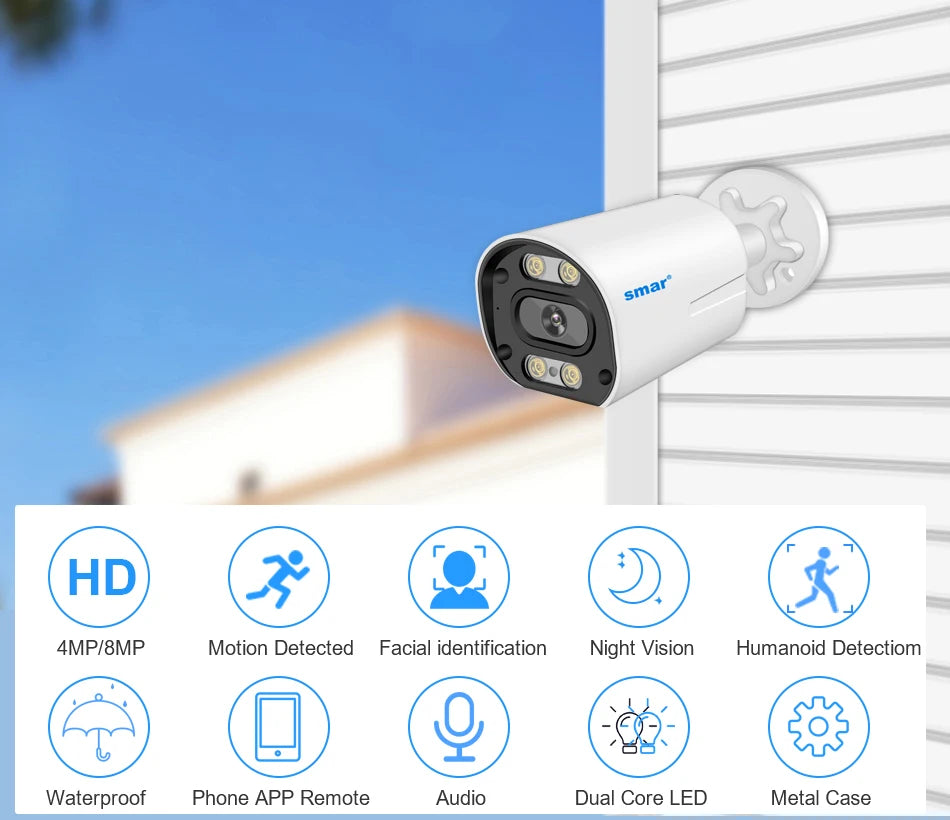

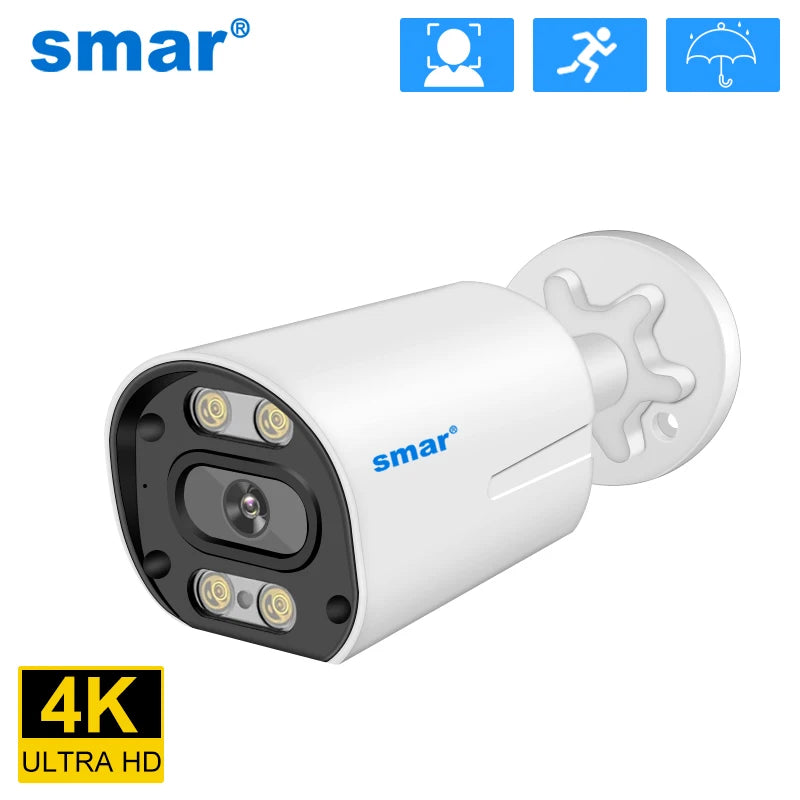

Smar 4K 8MP POE IP Camera Built-in Microphone Outdoor Waterproof H.265 Audio Video Surveillance CCTV Home Security Onvif XMEye
Pairs well with
Description
SPECIFICATIONS
AI Functions: Human Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
App name: Other
Audio Output: None
Audio Record: Support
Brand Name: smar
Certification: CE
Color Night Vision: Yes
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 63*65*100MM
High Definition: 8.0 Megapixels,4K 8MP/4MP
High-concerned chemical: none
IP Rating: IP66
IR Cut Filter: Soft photosensitive
IR Distance(m): 10-30M
IR LED: IR Array LEDs & Warm LEDs
Installation: Side
Internal Storage: None
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Material: Semi metal and plastic
Megapixels: 8MP
Minimum Illumination(Lux): 0.001/0.0001
Model Number: S6-NX3CFB
Motion detection: Support
Movement Range(Pan): Other
Movement Range(Tilt): Other
Onvif: Support
Optical Zoom: NONE
Power Consumption(W): 4W
Power Mode: Mains Electricity
Power Supply: With Poe
Power Supply(V): DC12V
Rechargeable Battery: NONE
Rechargeable Battery Capability: Other
Resolution: 3840*2160/2560*1440
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Plastic
Single: H.265++
Smart home platform: NONE
Special Features: Waterproof / Weatherproof
Style: Bullet Camera
Supported Mobile Systems: Windows Mobile,Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 90°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none
is_customized: Yes
ro

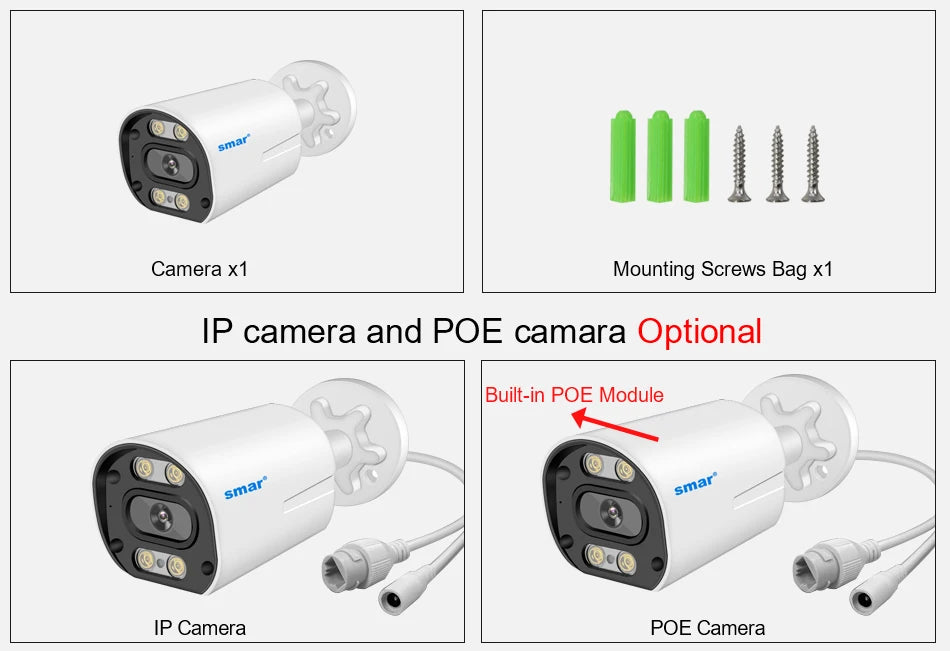

Packing List:`
1* 4K(8MP)/4MP IP Camera(POE Optional)
1* Mounting Screw Bag
|
Camera |
||
|
Camera Pixel |
4MP Camera |
8MP Camera |
|
Image Sensor |
1/3 " SC401 CMOS |
1/2.7" SC8239 CMOS |
|
DSP |
G4 |
NT98566 |
|
Video Compression |
H.265 +(Compatible with H.265/H.264) support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
|
|
Intelligence Analysis |
Supporting human detection; Support face detection (smar NVR must be connected) |
|
|
Signal System |
PAL/NTSC |
|
|
Min Illumination |
Color:0.001Lux/F1.2 B/W:0.0001Lux/F1.2 IR-ON:0Lux/F1.2 |
|
|
Audio |
Built in pickup |
|
|
Infrared LED |
4pcs Array IR LED + 4pcs White LED |
|
|
IR Distance |
15-30 Meters (The difference of scene environment will lead to differences of IR distance) |
|
|
Day&Night |
IR cut filter with auto switch |
|
|
POE(48V 802.3af protocol ) |
Optional |
|
|
Lens |
Default 3.6mm (2.8mm,6mm,8mm optional) |
|
|
Image |
||
|
Max Resolution |
2560*1440 |
3840*2160 |
|
Frame Rate |
Main stream: 2560*1440@18fps, |
Main stream: 8MP 3840*2160@15fps； |
|
Image Settings |
Brightness, Saturation, Contrast, Hue adjustable |
|
|
Image Process |
AE, AWB, ABF, ABLC, Digital WDR,2DNR/3DNR |
|
|
Wide Dynamic |
Support digital |
|
|
Noise Reduction |
Support 2D/3D |
|
|
Image Orientation |
Flip and Mirror |
|
|
Network |
||
|
Network Storage |
NAS |
|
|
Alarm Trigger |
Motion Detection, Video Blind, Video Loss, IP address conflict |
|
|
Alarm Way |
Email Alarm or FTP Upload |
|
|
Protocols |
TCP/IP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP |
|
|
Transmission |
P2P penetrate automatic forwarding |
|
|
CMS |
Support remote client monitoring software XMEYE |
|
|
Compatibility |
ONVIF2.3 |
|
|
Mobile Monitoring |
Support Android, iPhone IOS |
|
|
Interface |
||
|
Communication Interface |
1*RJ45 10M/100M self-adaptive Ethernet interface |
|
|
Power port |
1*DC12V(5.5mm/2.1mm) |
|
|
General |
||
|
Reliability |
Comprehensive lightning protection,in line with national and international standarda;7*24 hours 65 ℃ high temperature stable and reliable testing (camera board testing) |
|
|
Title OSD |
Channel name,Date |
|
|
Operating Conditi |
-20°~60°,humidity 90% or less (non-condensing) |
|
|
Power Supply |
DC12V ± 10% / 48V (802.3af international standard) |
|
|
Power Consumption |
Max.3W |
|
|
Waterproof |
IP66 |
|
|
Housing Material |
Metal + ABS |
|
|
Weight |
0.3kg(about) |
|

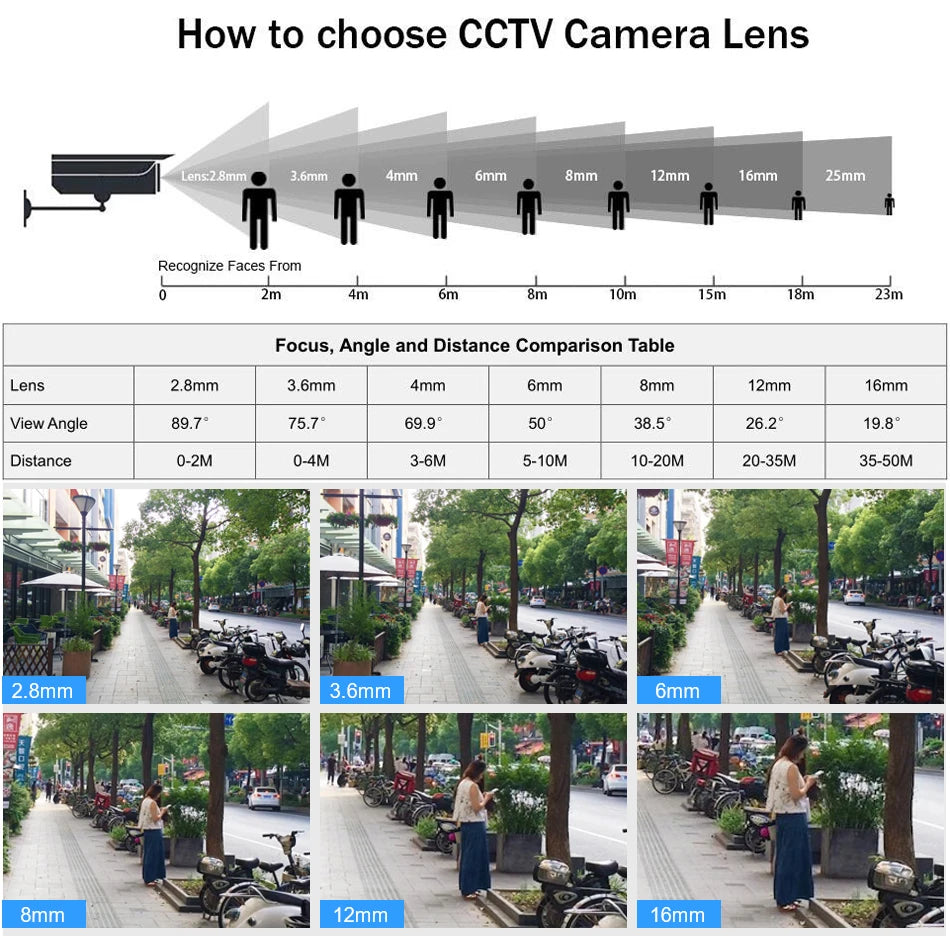

Below is the Lens Focus, Lens View Angel, Lens Distance Comparison Table.(for your reference)
4.0MP/4K(8MP) High definition image, super infrared night vision H265++ Video

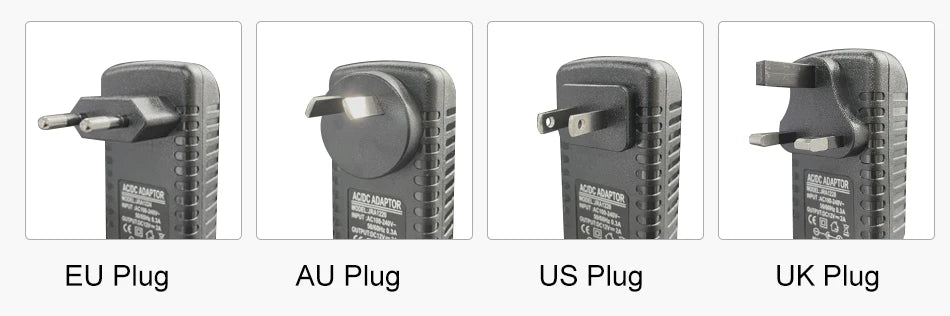

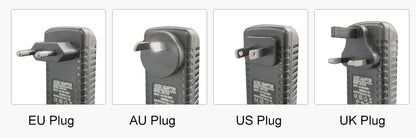

Our Camera does not include the power adapter.
If you need it, We can recommend for you, Please kindly click the photo as below, Add It in your Order List, Thanks ! (EU/UK/US/AU Optional)
Smart IR-Cut Full Color Night Vision
When movement is deteced, turn on full color mode.
There are three modes for you to select. (Day Vision, Night Vision, Full Color Night Vision)
Support HDR Technoloty
(HDR=High Dynamic Range) technology that works to ensure you capture the most important details,regardless of lighting conditions. Dynamic range is measured as the difference between the brightest point and the darkest point of the video.
3DNR Enhanced Clarity in Low-Light Situations
Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess,
your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark!
Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.
Support Audio Function
Built-in microphone,Customized new speakers with loud volume .

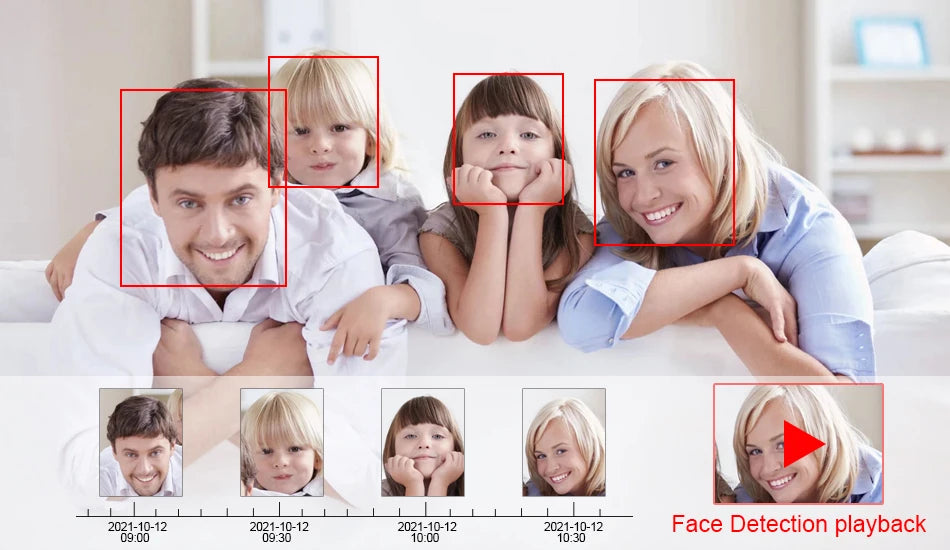

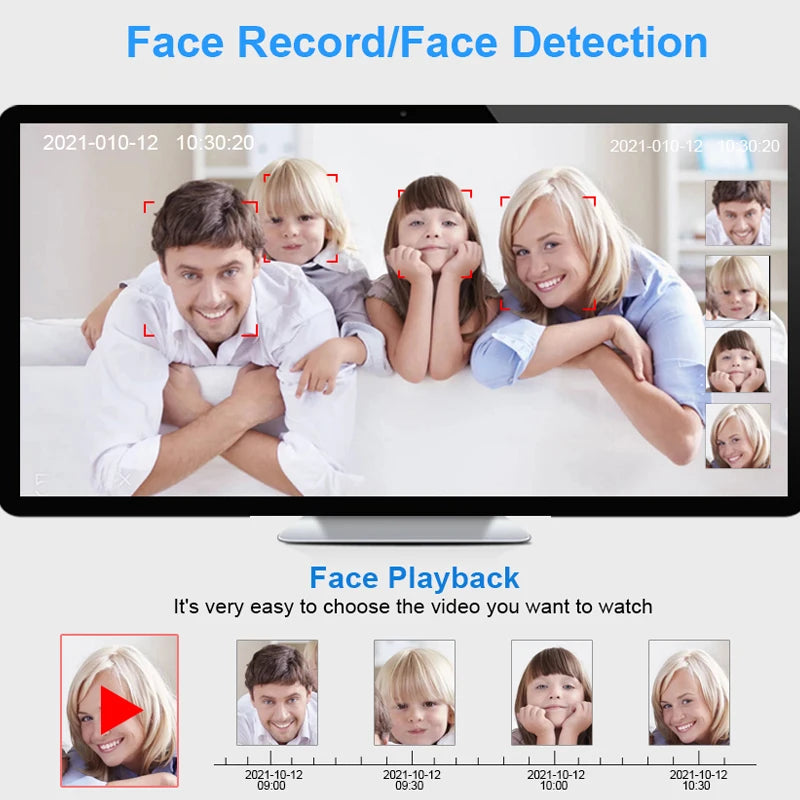

Smart AI Face Recognition/Face detection/face playbackace
AI face detection is more easy to catch the detail arround you . When someone invades, the "smar" security camera can clearly capture the details of the person's face and protect your property at all times.
(Your NVR Must support XM/Smar Face Detection, or will not work)

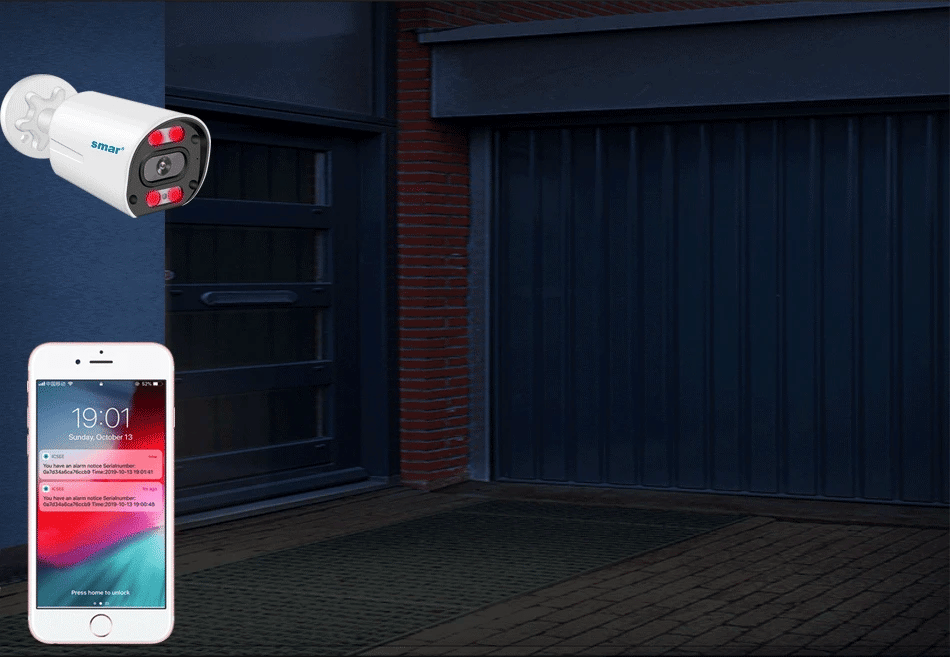

Motion Detection & Email Alert
You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection;
When motion is detected, the Camera can send email or start record to the hard disk without missing any important events.

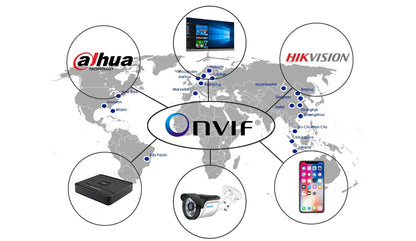

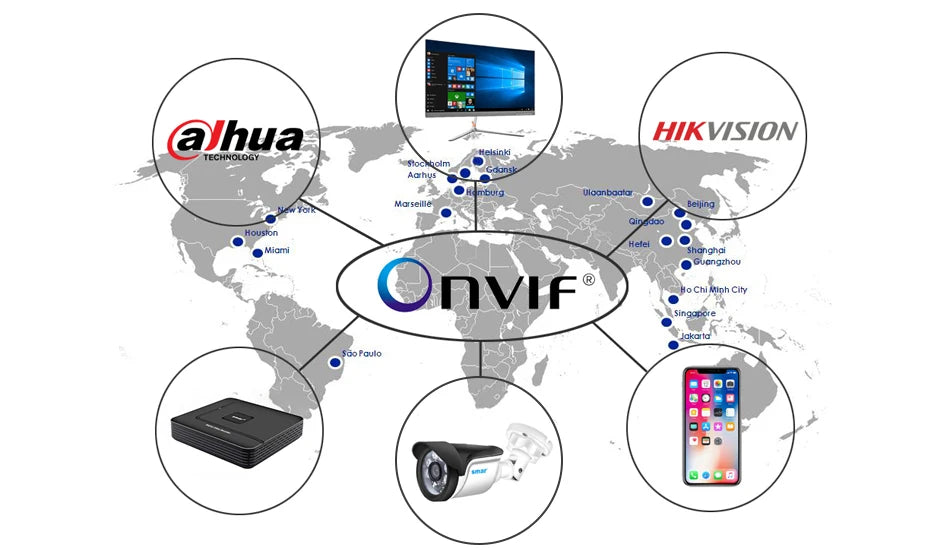

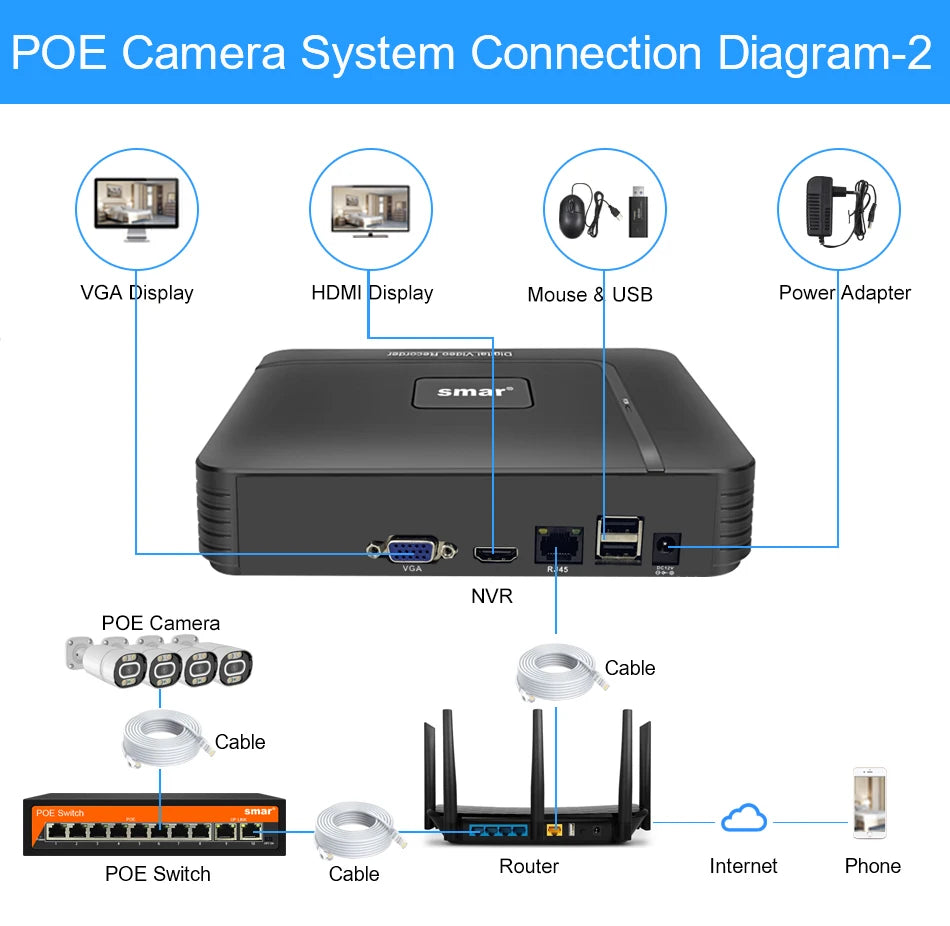

Support ONVIF
you can connect any brand's Onvif IP Cameras to our this NVR;
Reminder:
This IP Camera support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；
Onvif: It is an international open network video product standard network interface protocol；
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......
(Note: We recommend that when you buying the IP Camera, also buying the NVR from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

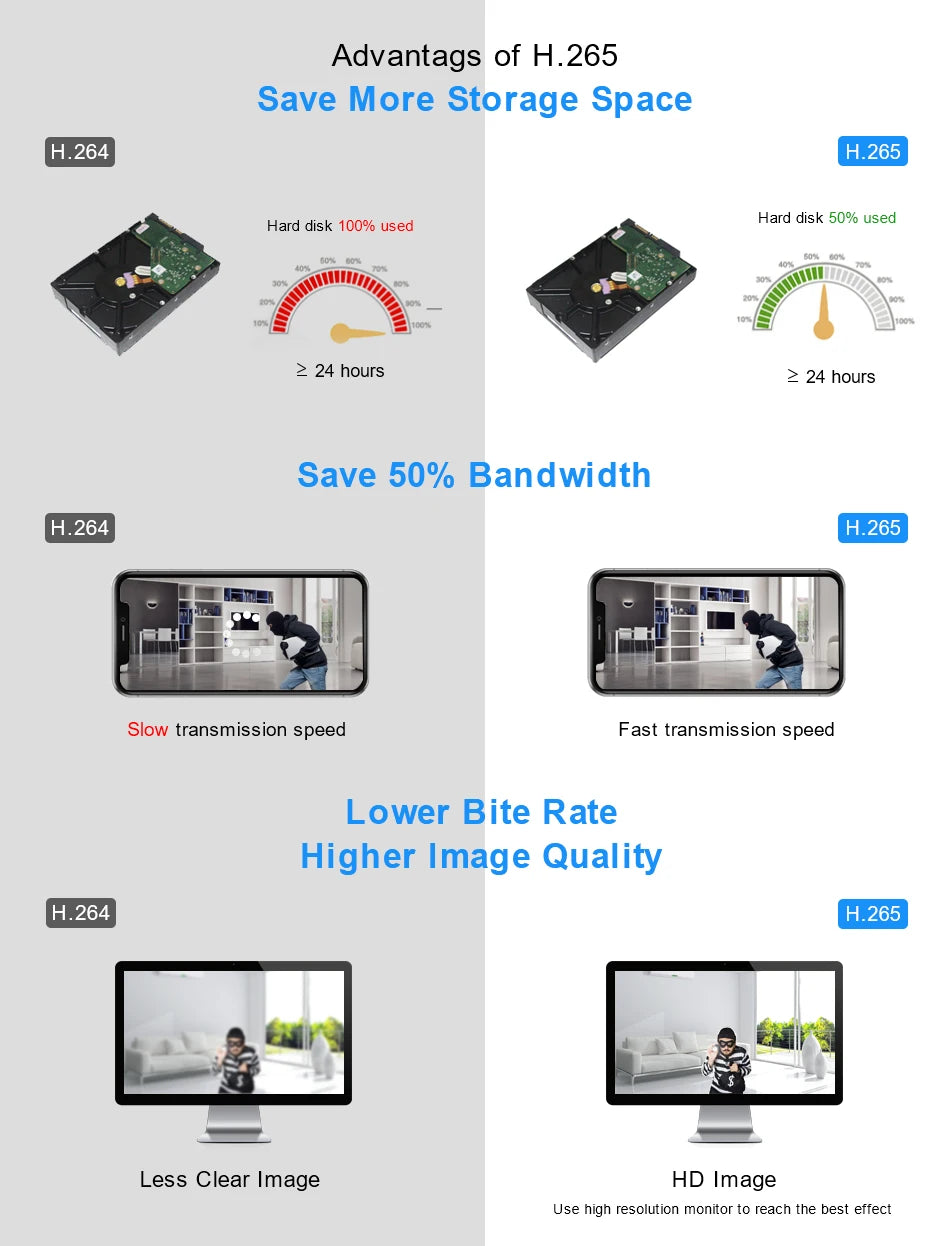

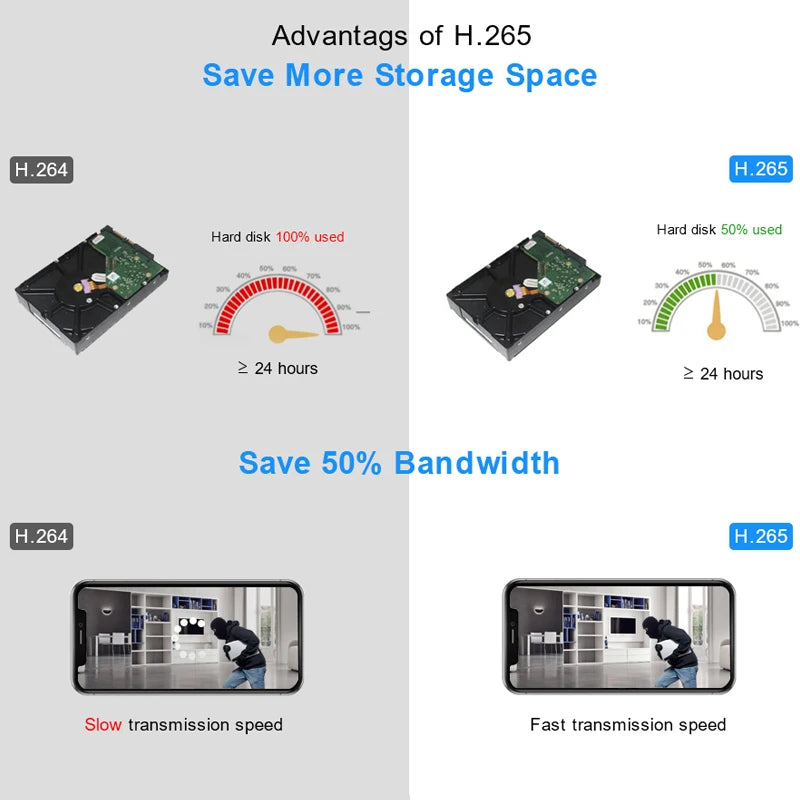

Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

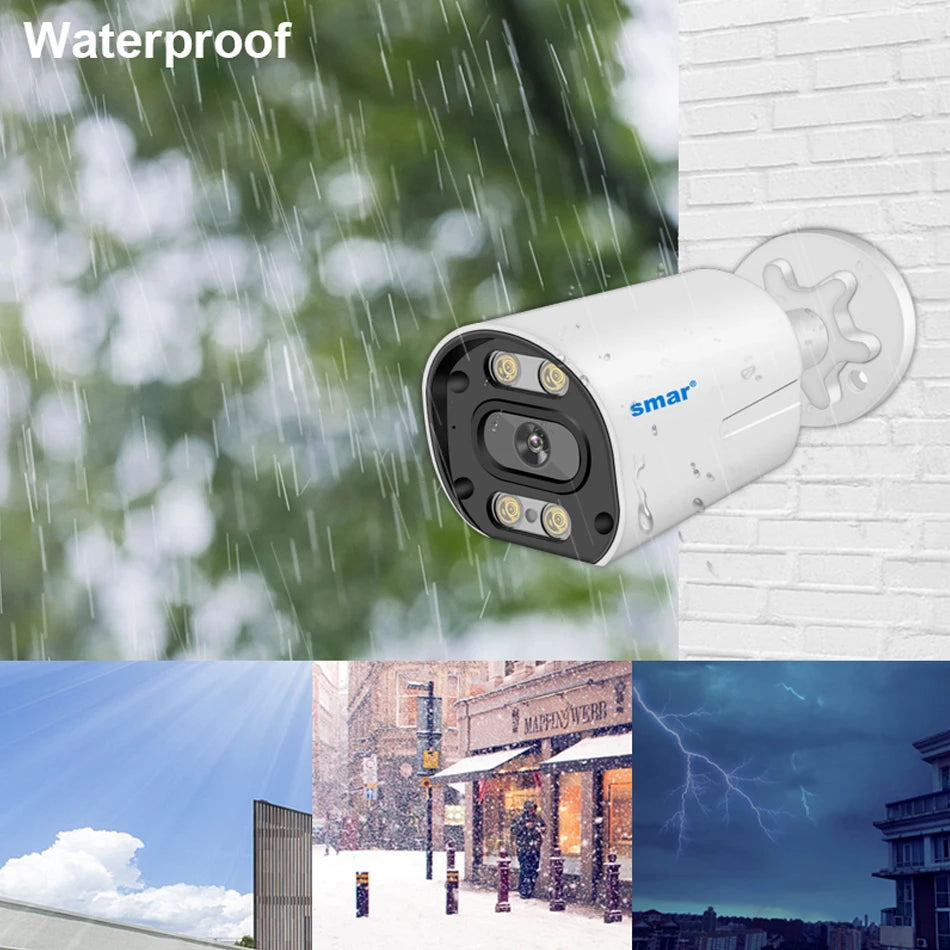

IP66 Waterproof
The camera case is made of high-quality ABS plastic , which is Water-proof, Sun-proof,Snow-proof and Lightning-proof,It is suitable for any environment.

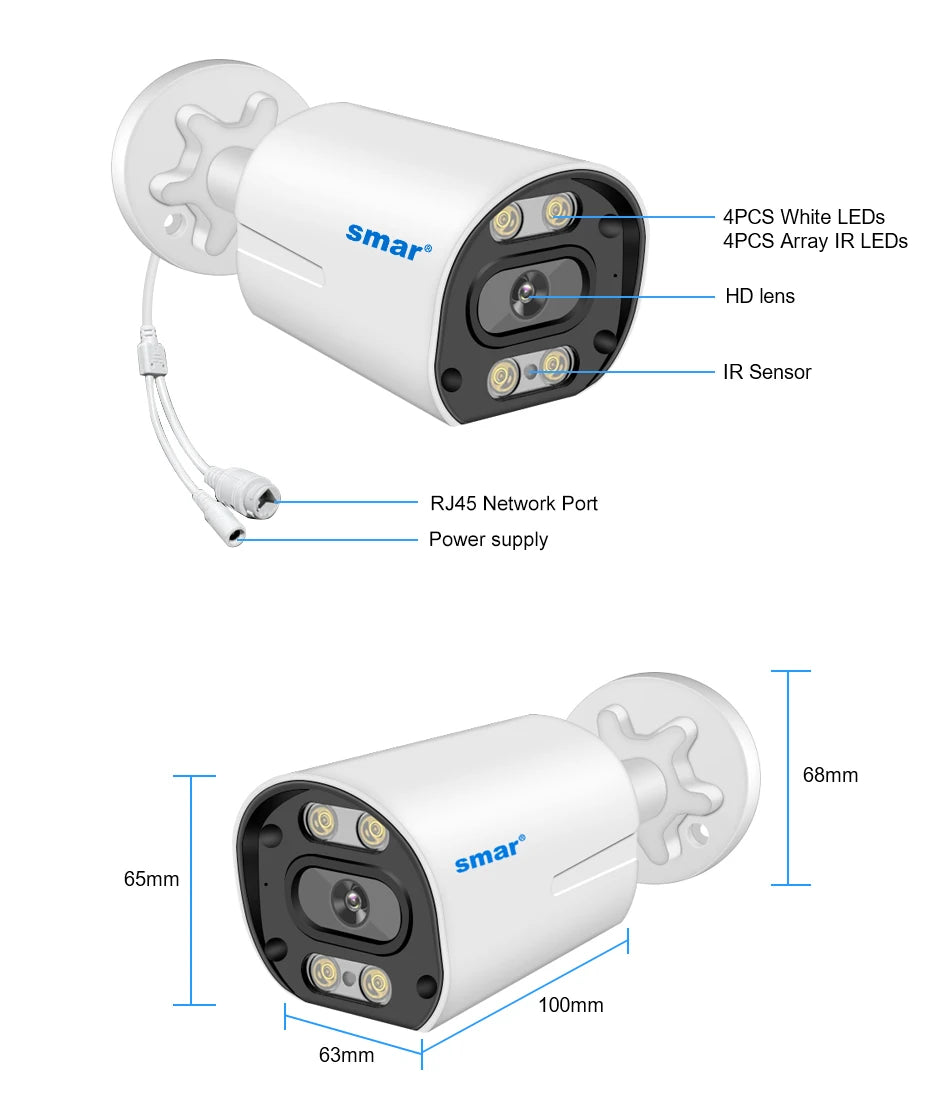

Camera Size and Multi angle display:

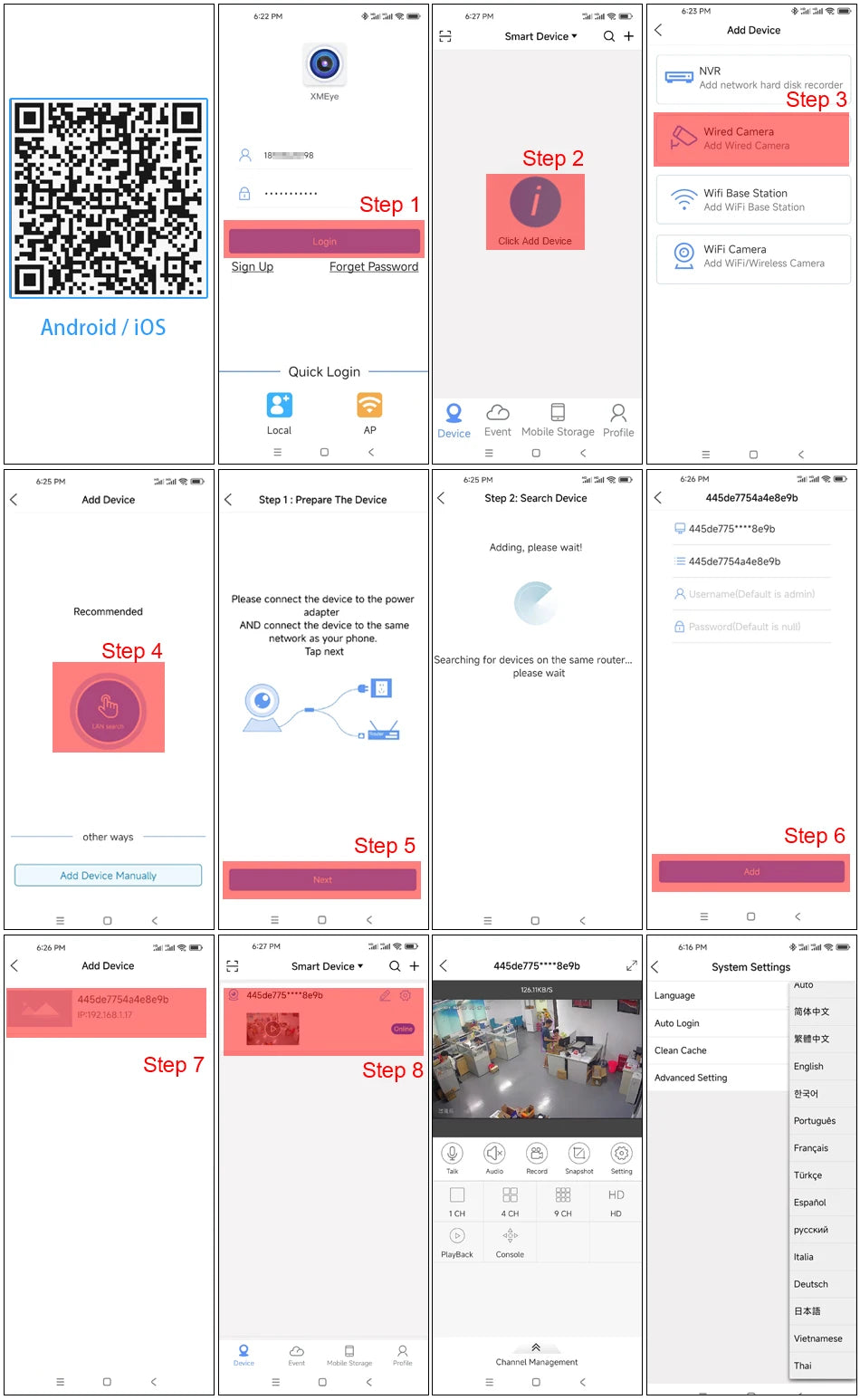

Remote access via Mobile Phone
Please scanning the QR Code, then intall the XMEye Pro APP on your phone;
Then follow the steps in the picture to add the device and connect it successfully. You will be able to access videos anytime, anywhere through your phone

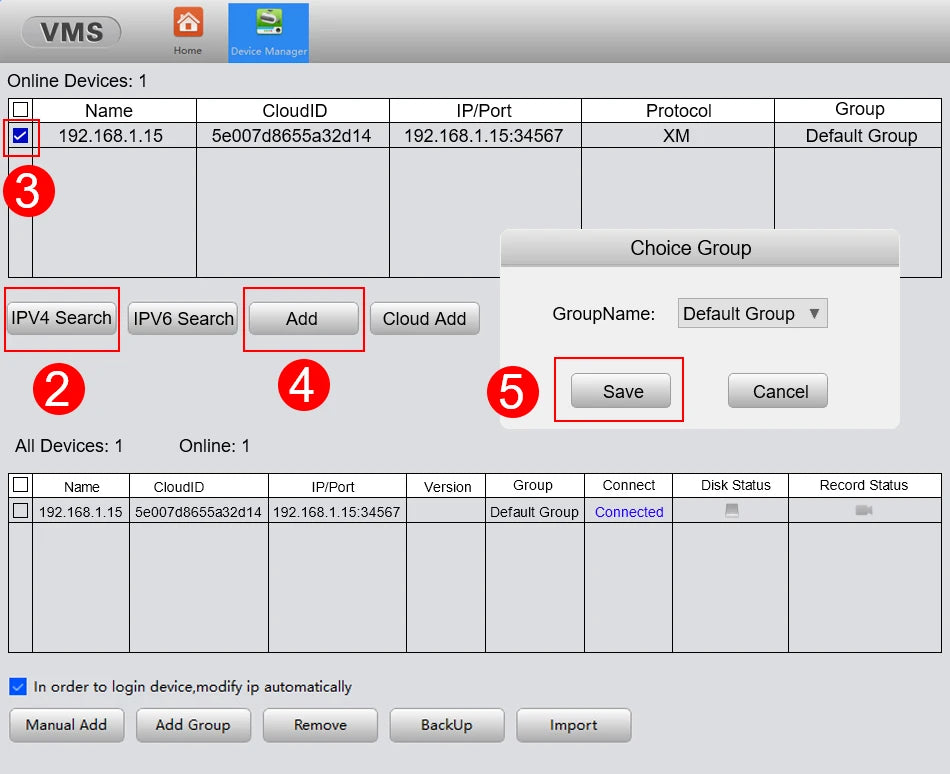

VMS For Local Review & Record

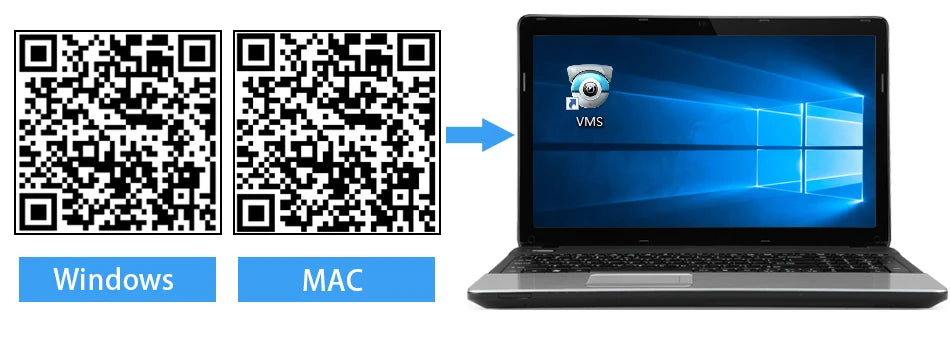

1. Please used your mobile phone to scan the QR code as below, and then click to download；

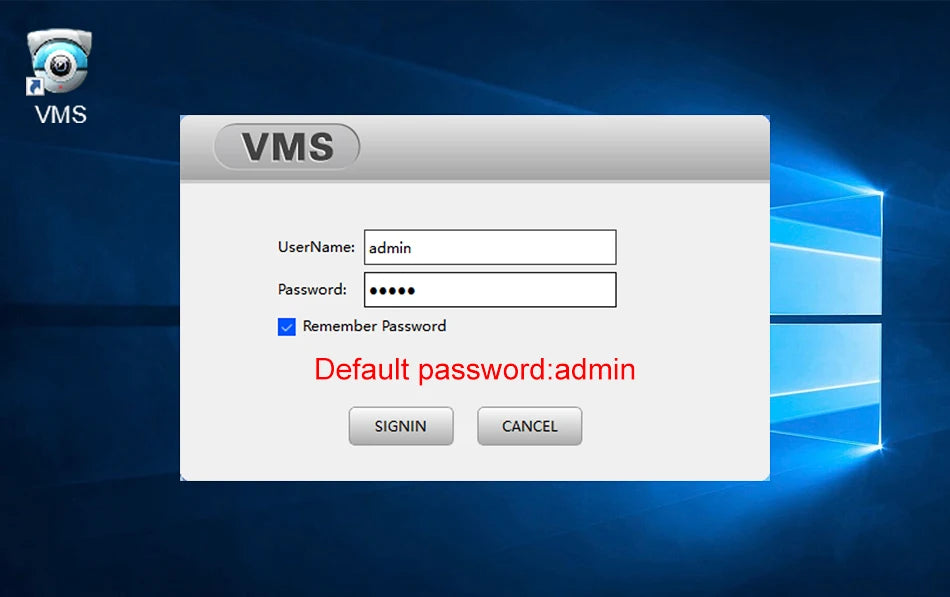

2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

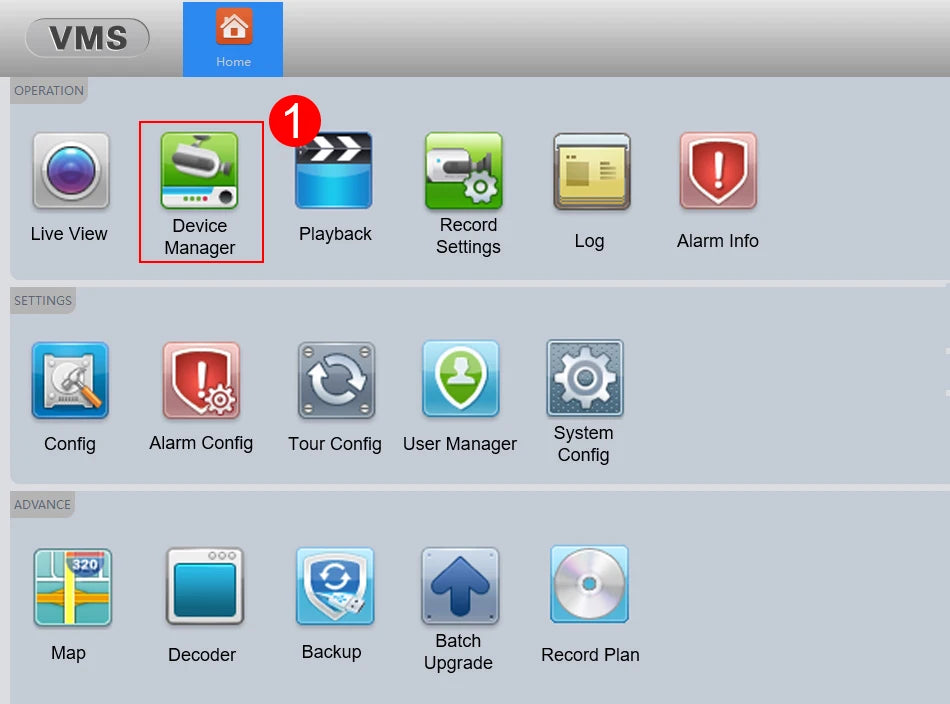

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;

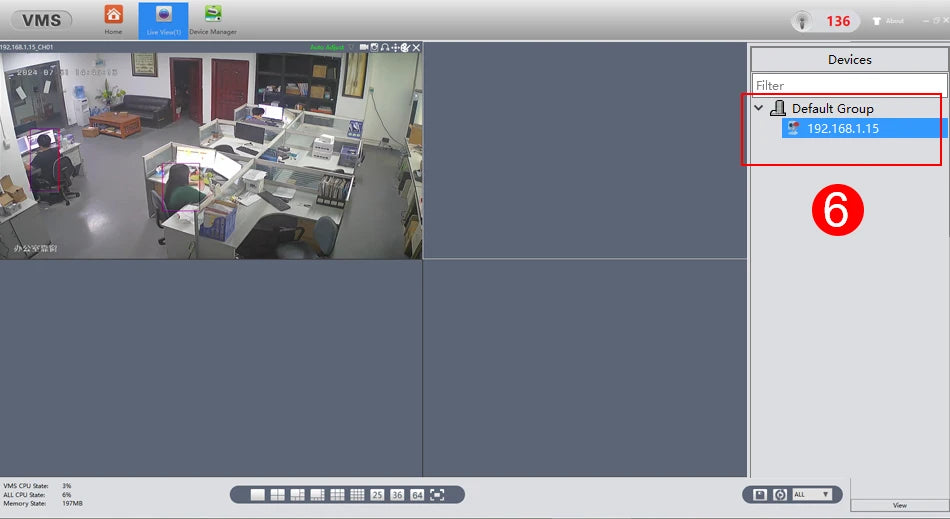

4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.

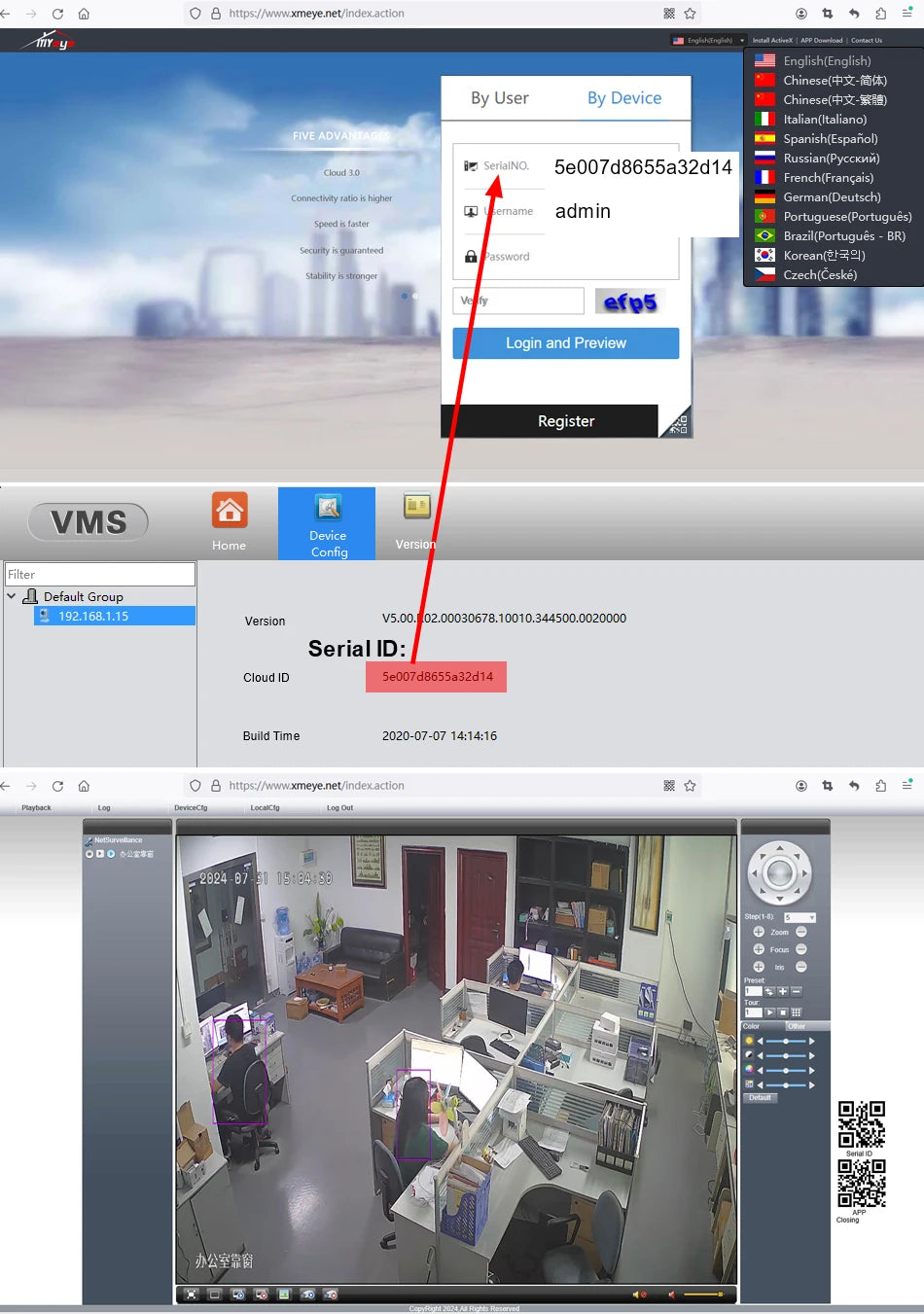

Remote View Via P2P Cloud( XMEYE.NET)
If you want to remote view thourh Internet
Please login your Google or IE or Firefox browser
Then input Website of P2P Cloud: www.xmeye.net
Input your P2P ID, and your password, login in.
(Note: If your computer can't open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access ).
|
|
