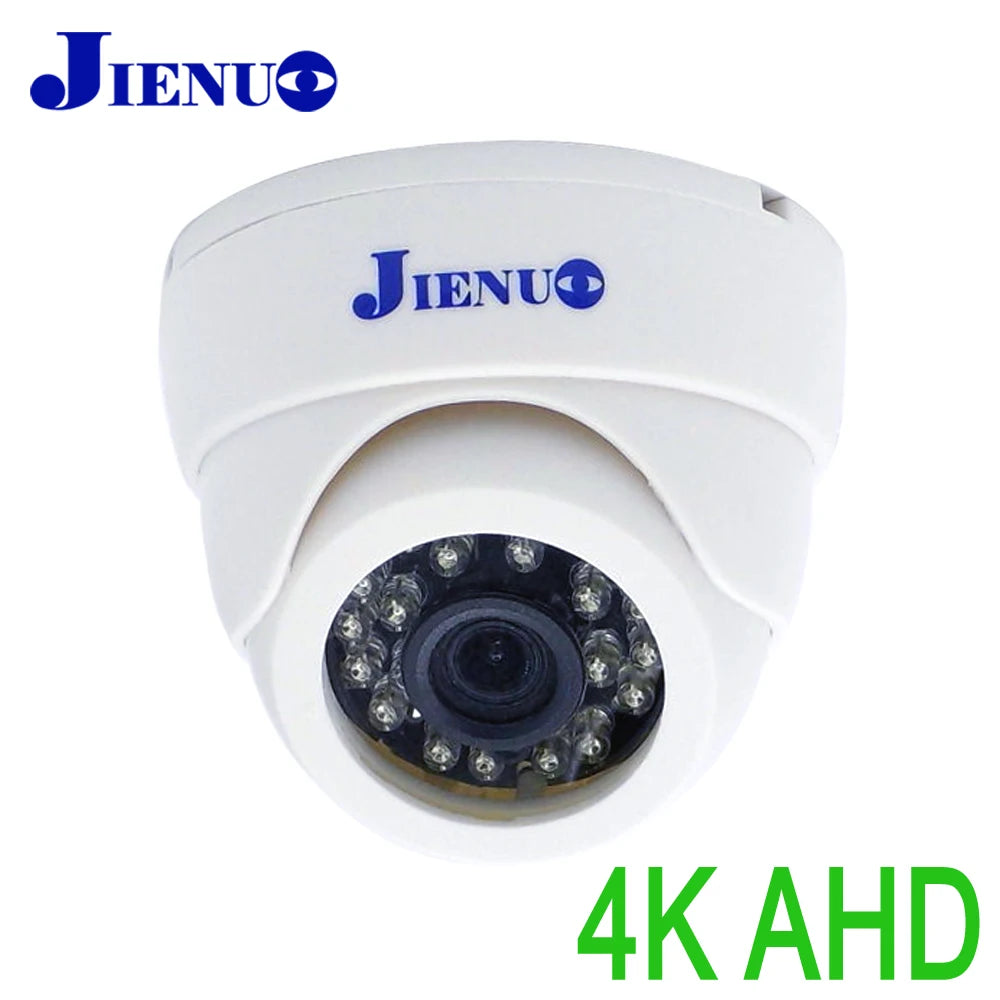

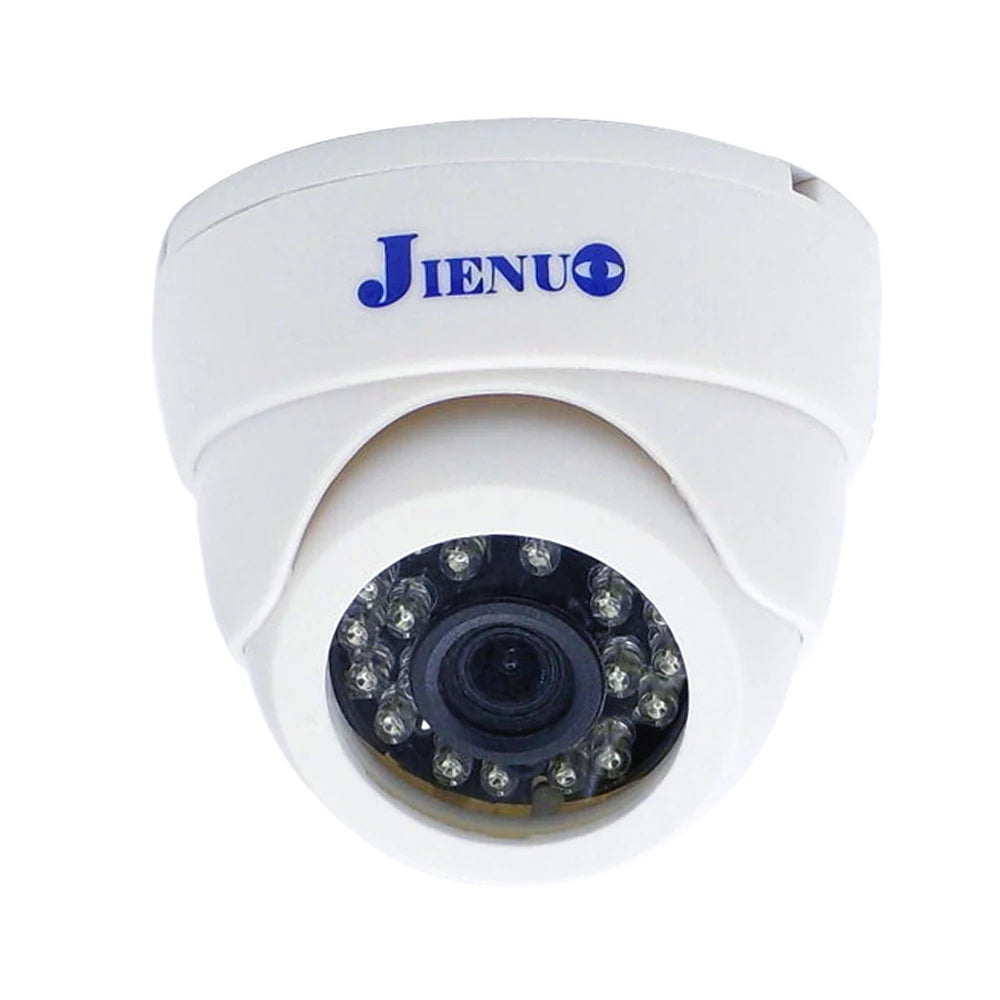

JIENUO 4K CCTV AHD 1080p Camera White Dome Security Infrared Night Vision 5MP TVI CVI 2mp Video Home Front Rear View Cam System
Pairs well with
Description
SPECIFICATIONS
Audio Output: None
Brand Name: JIENUO
Choice: yes
Color: WHITE
Color Night Vision: no
Connectivity: Closed System/CCTV Wired
High Definition: 8.0 Megapixels
High-concerned chemical: none
IP Rating: Other
IR Distance(m): 25
Installation: Ceiling,Normal,Wall Mounted,Stick,Pendant Mount,Vertical Pole Mount,Corner Mount
Internal Storage: None
Lens (mm): 6mm,2.8-8mm,3.6mm,8mm,12mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 1/2.7
Model Number: JN-403D-AHD
Operating Temperature: -10°-60°
Power Consumption(W): 5W
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): DC 12V
Scene: Indoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Plastic
Style: Dome Camera
Supported Operating Systems: No
Video Compression Format: MPEG4,MJPEG,H.264,H.265
Viewing Angle : 75°
Zoom: NONE
Zoom type: none
is_customized: Yes

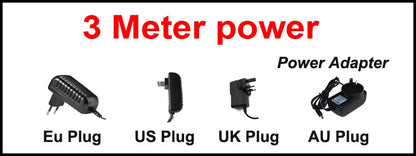

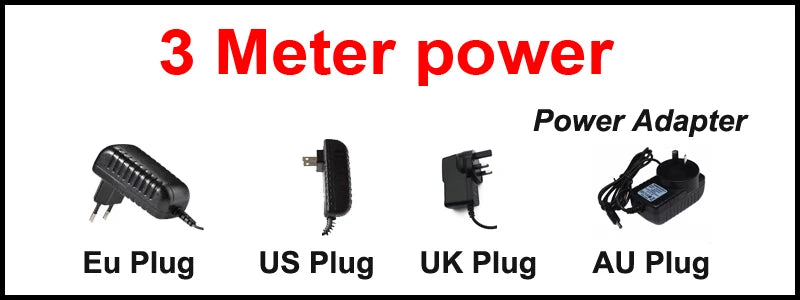

The product does not include a power adapter, if you need a power adapter and other accessories, please choose
Why AHD
As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

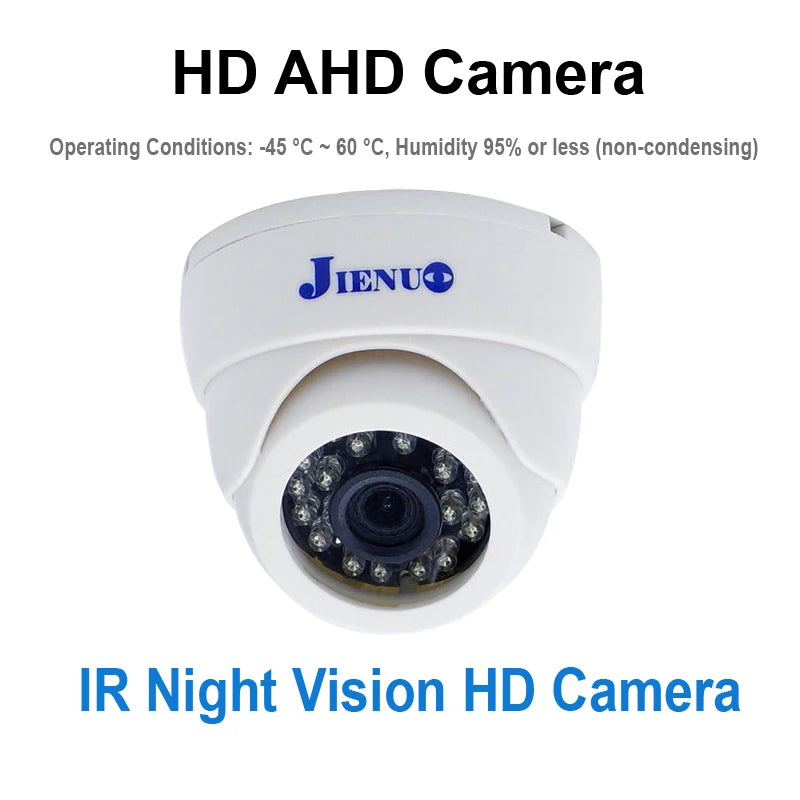

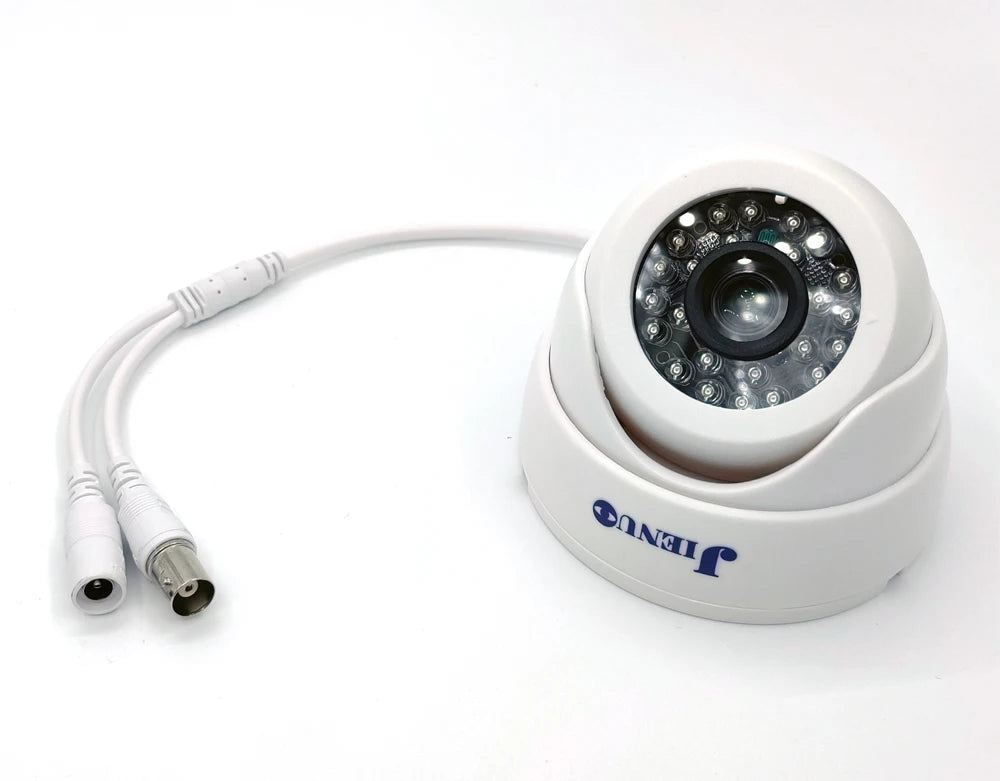

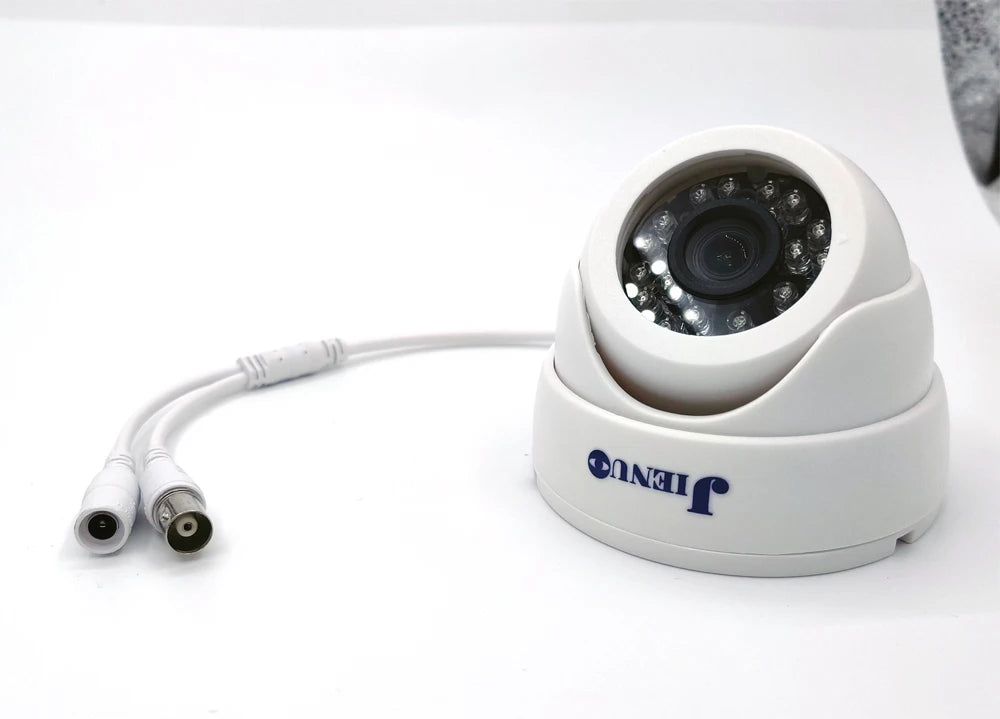

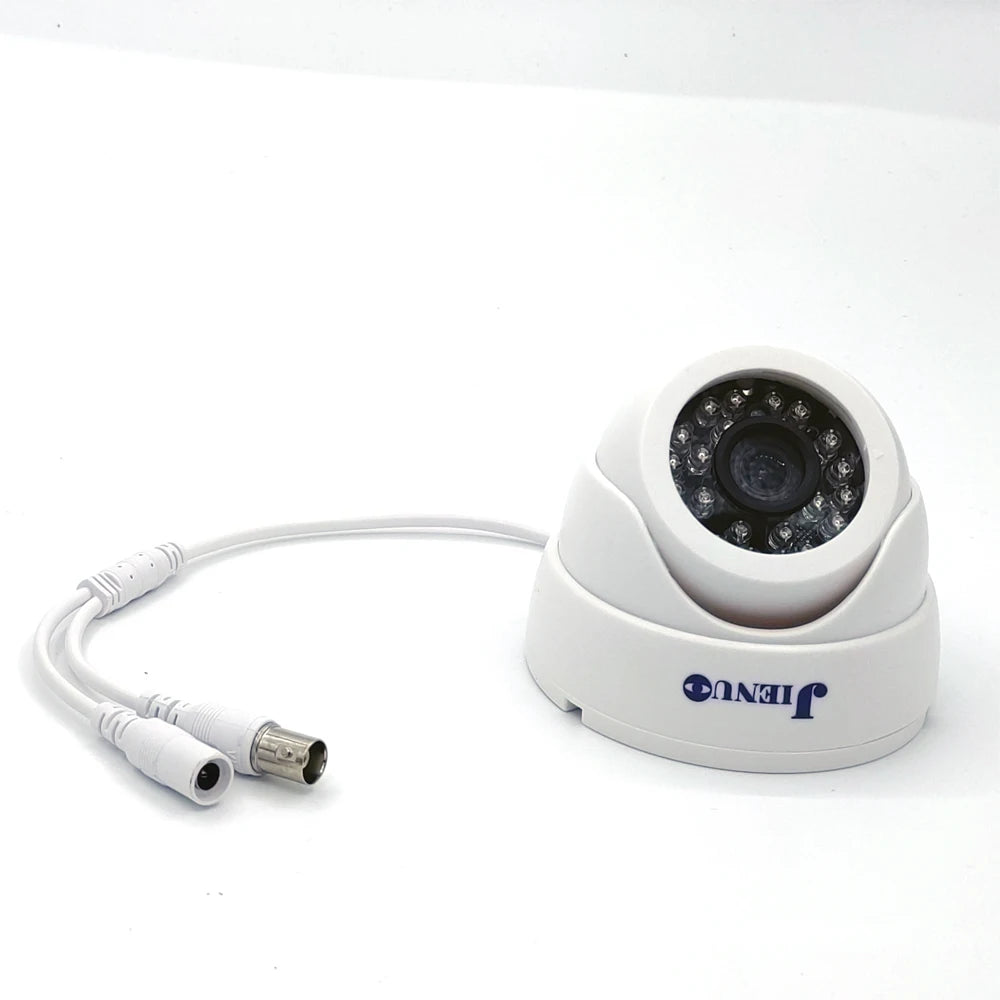

HD AHD Camera
1.HD camera
2.Resolution :720P / 1080P / 5MP /4K
3.24PCS IR LEDS with 30M IR Distance

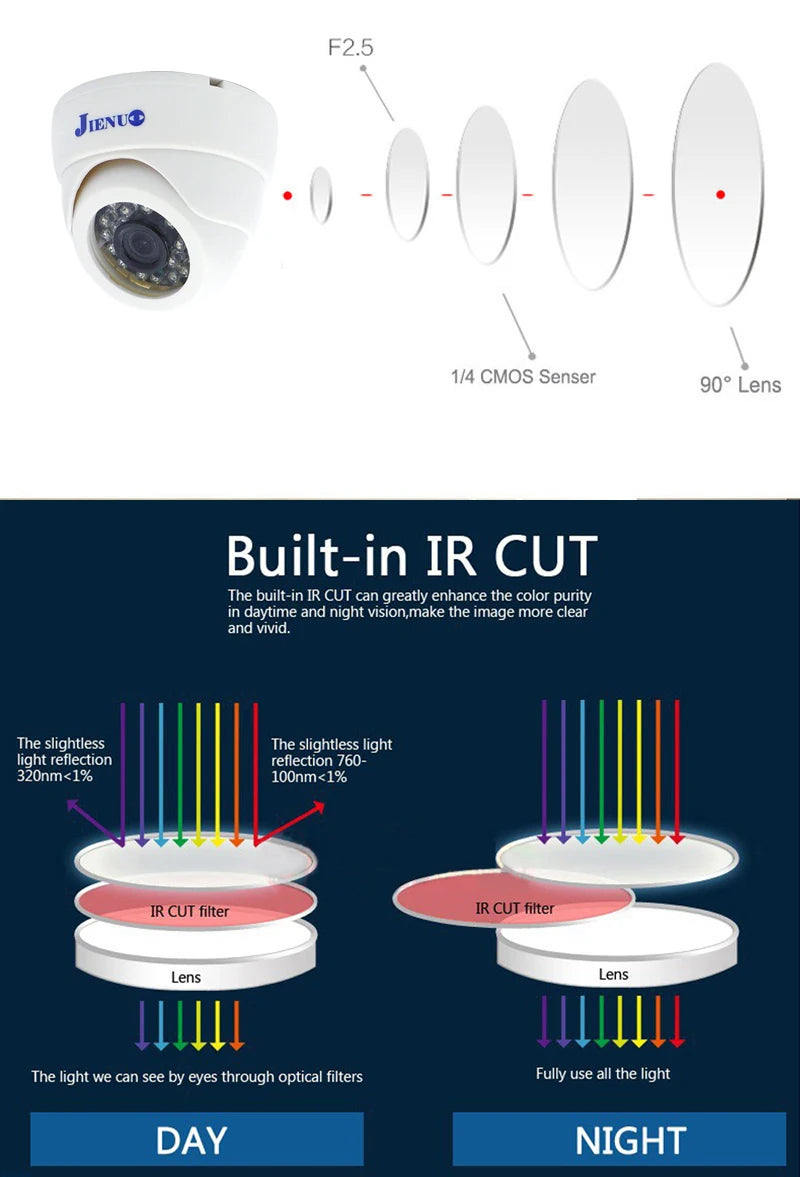

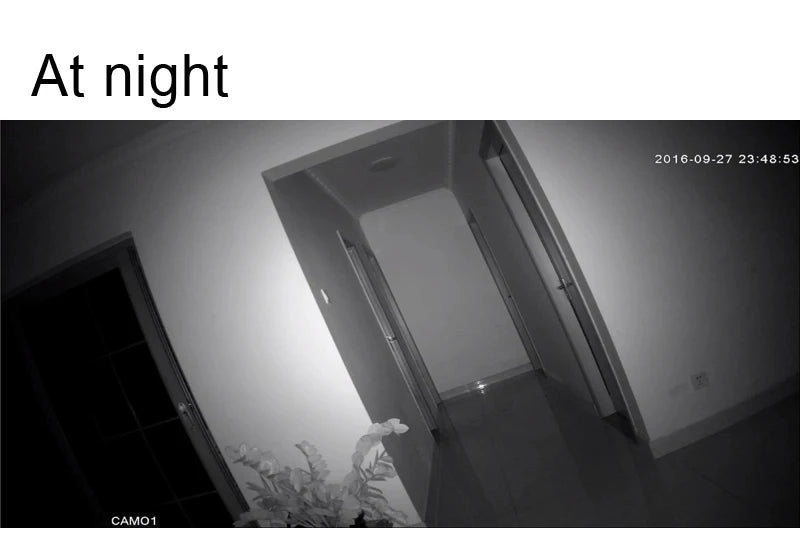

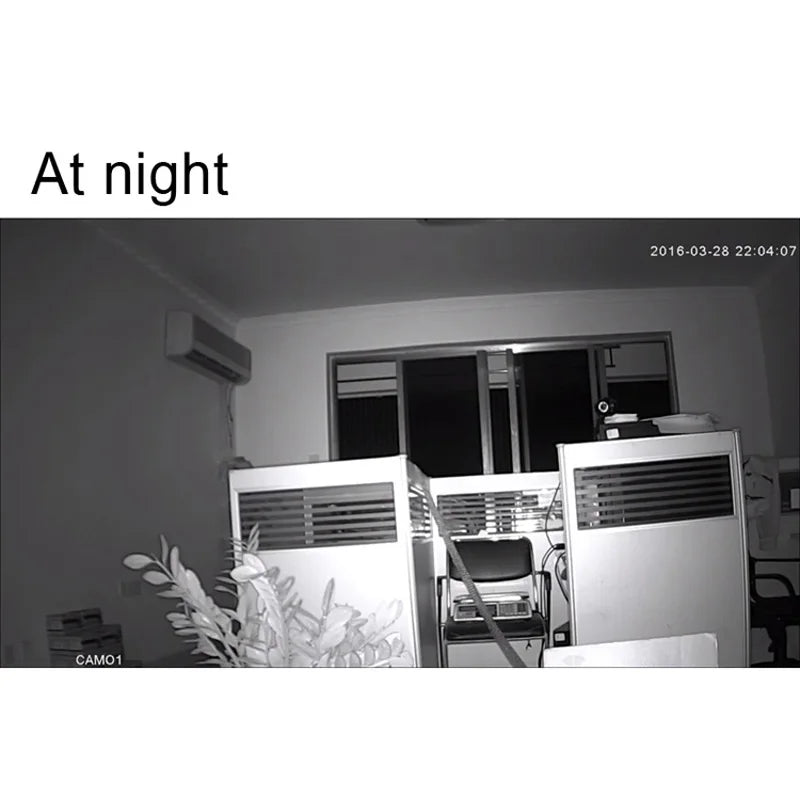

4. Built in IR-CUT Filter, Day & Night Vision
5. High Quality ABS Plastic Case, Does not support waterproofing
6. Standard lens: HD 3.6mm Lens ( 6mm lens optional).
7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.
10. MUST work with AHD DVR
11. Best choice for project reconstruction.
12. You can upgrade an old analog security system to HD cameras without changing cable routes.
***P.S: Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV
When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu, or contact us

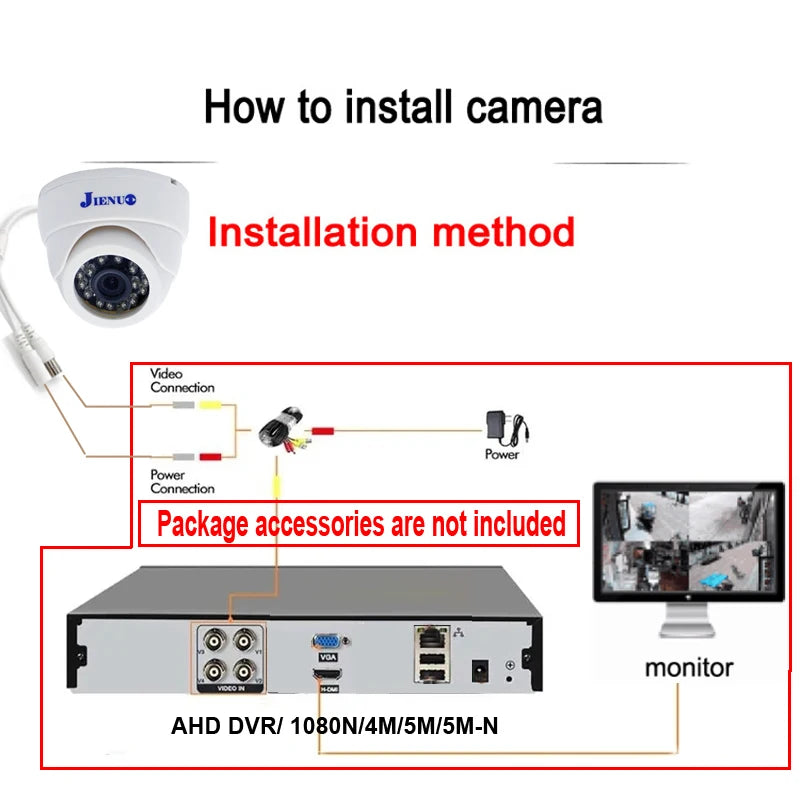

How to install camera
Installation environment and installation method

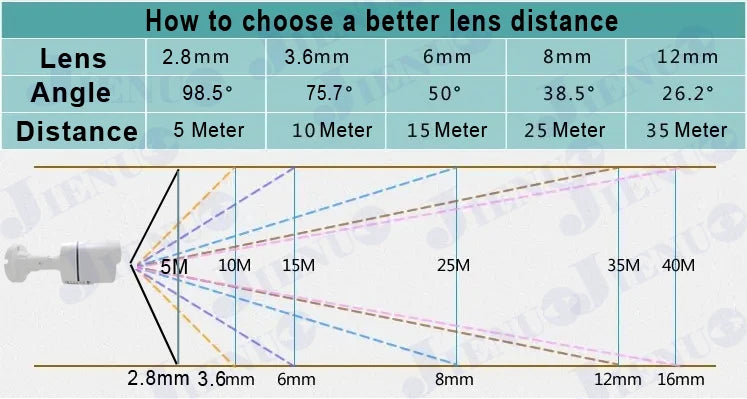

How to choose
720P: digital signal, video resolution: 1280*720, does not support TV connection, does not support analog DVR and monitor connection, (note) only supports AHD DVR connection, Camera does not have any menu settings, (note) supports connection to AHD DVR list (720P /1080N/1080P/4MP/5M-N/5MP/4K)
1080P: digital signal, video resolution: 1920*1080, does not support TV connection, does not support analog DVR and monitor connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)
5MP: digital signal, video resolution: 2560*1920, does not support TV connection by default, does not support analog DVR and monitor connection by default, supports entering Camera menu settings through AHD DVR (XVI control to enter menu), (note) supports connecting to AHD DVR list ( 5M-N/5MP/4K )
4K HD Camera: Digital signal, 4K effective resolution up to 3840*2160, TV connection is not supported, analog DVR and monitor connection is not supported by default, it is supported to enter the Camera menu setting through AHD DVR (XVI control to enter the menu), (note) support to connect to AHD DVR list ( 4K )
Old DVR connection: CVBS analog signal, 960H, supports TV connection, supports analog DVR connection, Camera does not have any menu settings, supports connection list (TV / Old DVR / 720P/1080N/1080P/4MP/5M-N/5MP/4K)

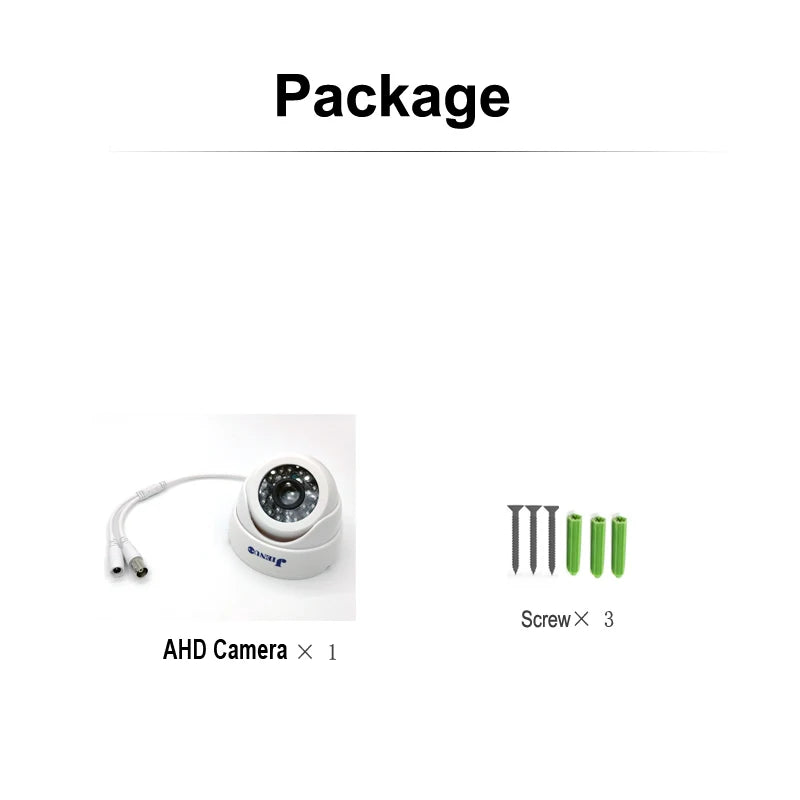

What is Included
Camera*1
Mounting screws*1
